Ammonite Solaris Nextgen Light Kit
The Ammonite LED Solaris NextGen dive torch is a primary dive light that is built to withstand the harshest conditions with up to 4500 lumens of light with a narrow 6 degree beam surrounded by a bright glow. Full power burn times range between 2 to 5 hours extended to 3-8 hours on regular operational mode. Kit includes light head, cabling, battery and charger.
Battery Size
Dispatched in 1 to 2 days
If you're looking for consistent quality and enhanced performance in a reliable primary underwater dive torch, the Ammonite LED SOLARIS NextGen Light Kit is built to withstand the harshest underwater conditions.

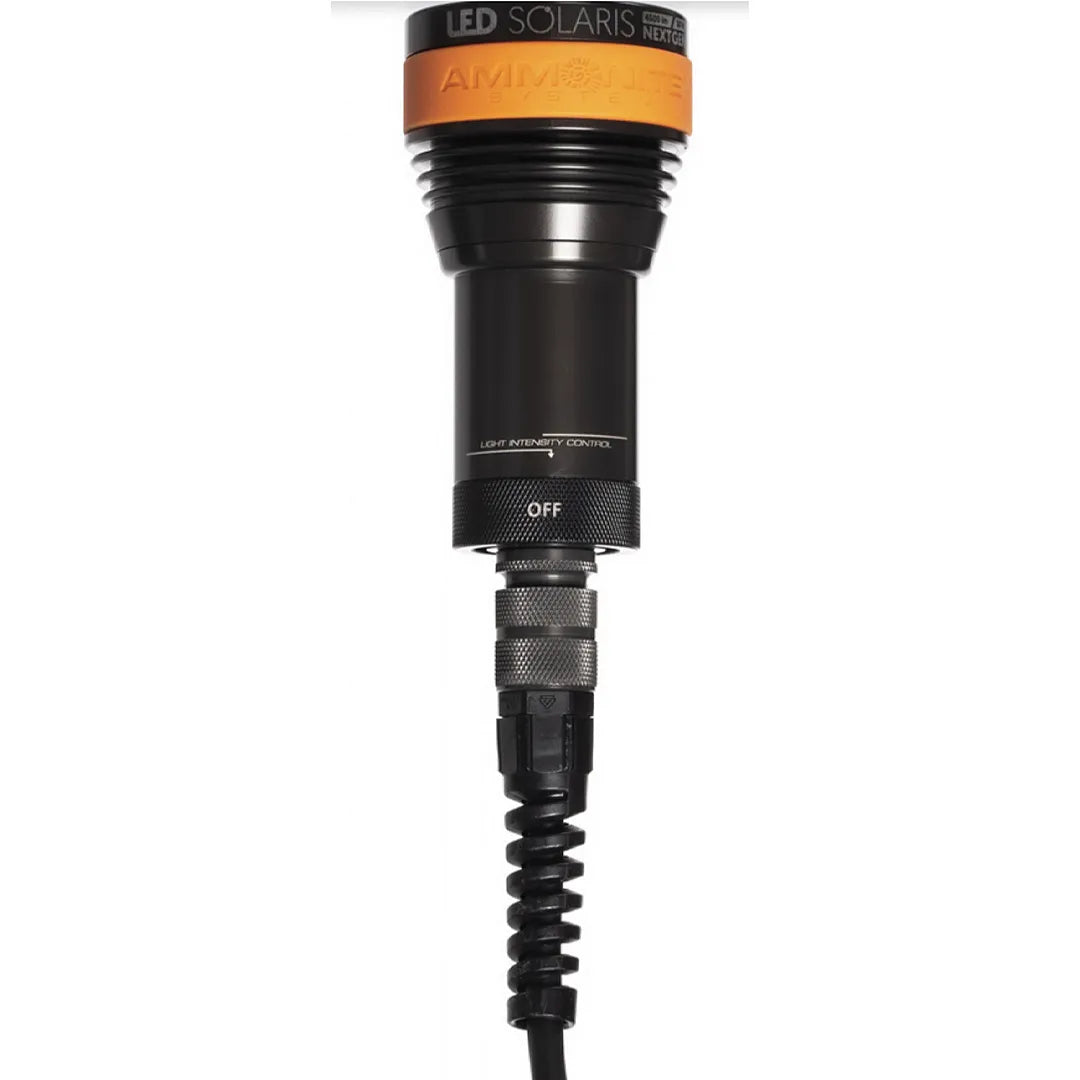

The Ammonite LED SOLARIS NextGen light head reliably pumps out up to 4500 lumens of light that has a narrow to 6 degree beam, surrounded by a bright glow that spills out around the centre beam. The light source is 5 x LED CREE XPL with 5 x reflectors protected by a 6mm tempered front glass.
Depending on the power and size of the Ammonite battery used, burn times of the Ammonite LED SOLARIS NextGen light head range from just under 2 to 5 hours in 100% boost mode and can be extended to 3 to 8 hours on the regular operational mode.
BURN TIMES AND COMBINATIONS

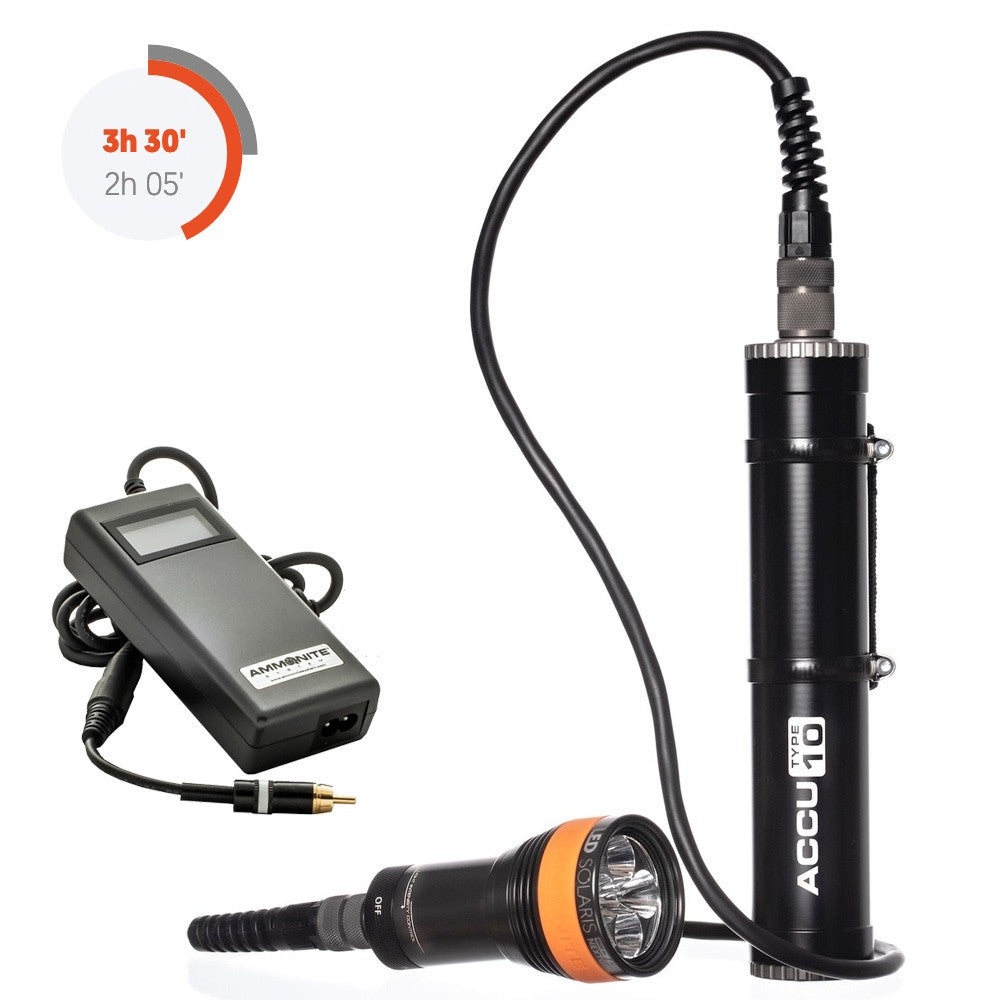

You can select between three Ammonite LED SOLARIS NextGen light kits based on battery size, power and burn time required. Each kit contains:
- Solaris NextGen Light Head and HD light cable
- Chosen Battery and charger

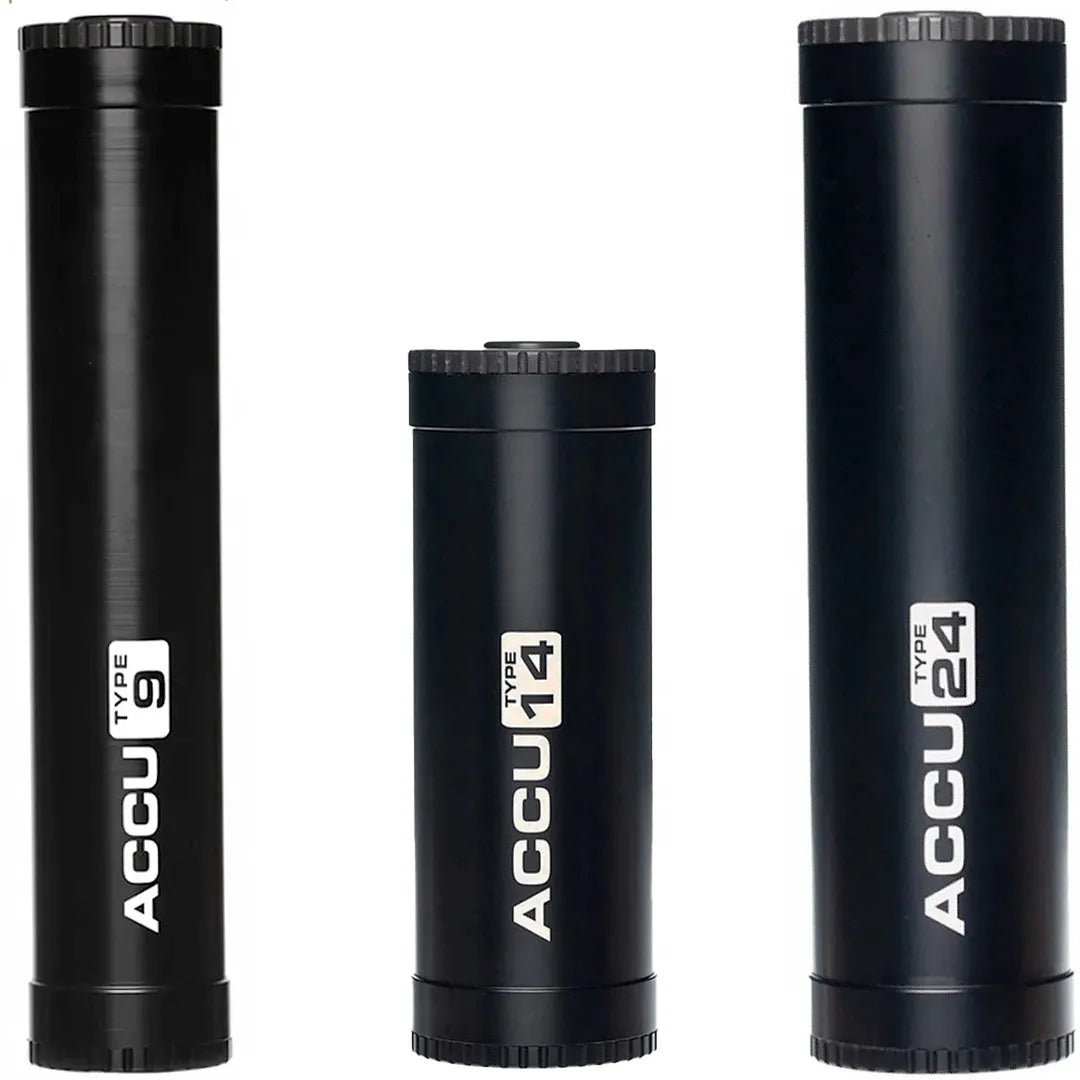

Each of the batteries below, the Accu 10, Accu 14 and Accu 24 can also be individually purchased, meaning you can have more than one size of battery to cover any condition, whether it's just for a short dive or an exploration dive with extended bottom time and decompression.
CONSISTENT QUALITY AND ENHANCED PERFORMANCE
LED SOLARIS NextGen has a tough aluminum design, offering protection against knocks and scratches, substantial depth rating, and an ergonomic design that’s comfortable to use.
PERFORMANCE AND COMFORT
LED SOLARIS NextGen provides up to massive 4500 lumens of light on full power.
It also features three light levels BOOST, OPERATIONAL and BACK-UP modes (the latter to preserve battery) and adjust brightness levels to eliminate backscatter in murky water.
The burn time of the light will depend on what level one has chosen.
DURABILITY AND RELIABILITY
It is built from quality marine aluminium alloy covered with a hard anode making it resistant to corrosion and mechanical scratches.
Easy to operate switch knob is made of lightweight but very tough and resistant to environmental conditions polymer (Delrin®).
The 6 mm front glass is made of highly resistant tempered glass. The depth rating is 200m.
COMPACT DESIGN
Heavy-duty hard anodised aluminium alloy casing, only 117mm long and 61mm wide in diameter.

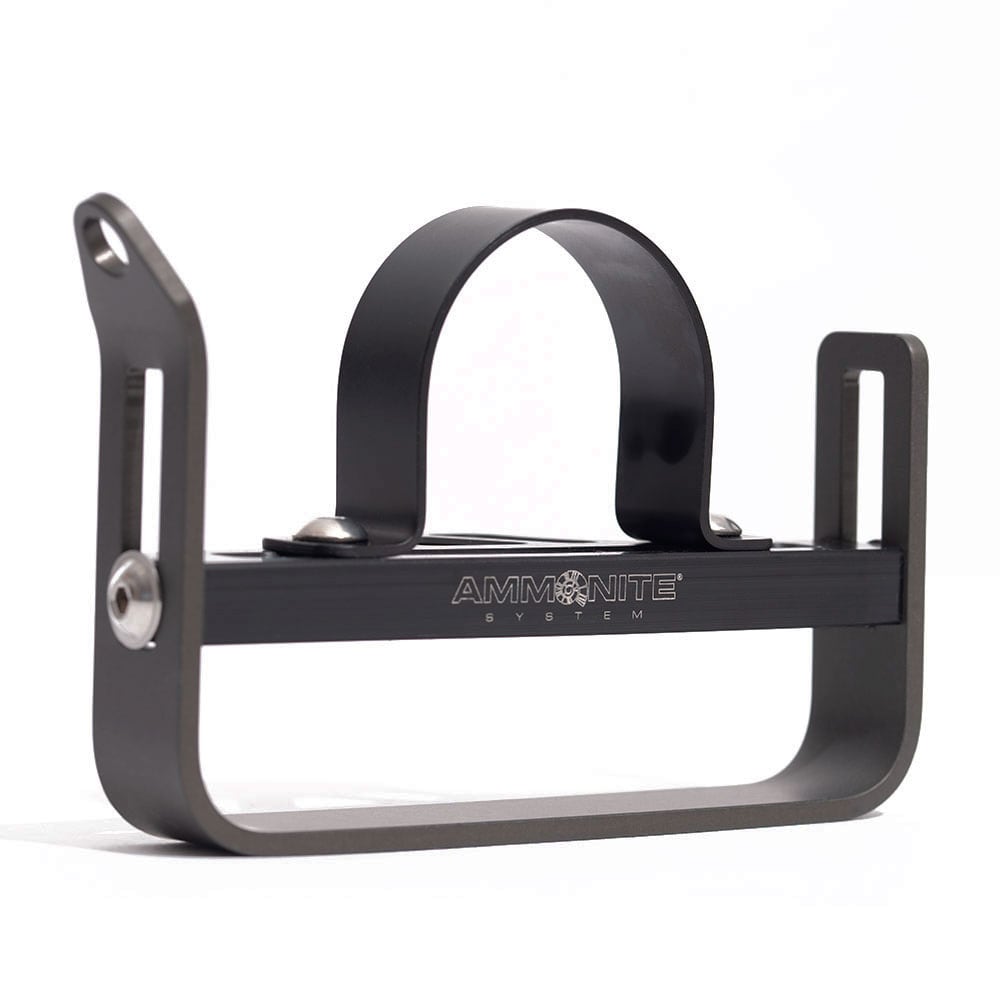

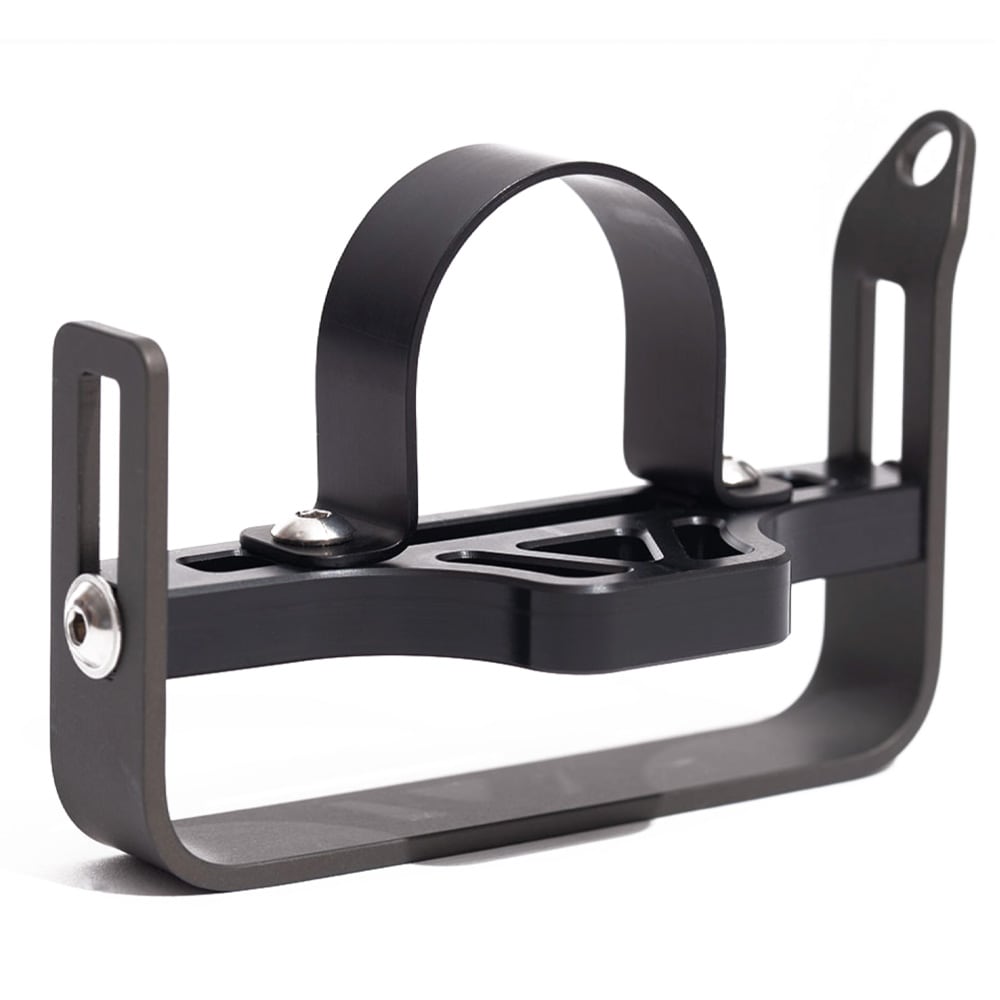

Yet while exceptionally durable, it only weighs 340g (130g in water), making it easy to manoevor when holding it by hand or with one of Ammonite System Goodman handles so you have lots of flexibility.
ADDITIONAL PROTECTION AND STATUS SIGNALING
The electronics in the headlamp control the condition of the battery.
The inner microchip system signals a low battery level with a strobe flash and automatically switches to backup mode (reducing light output to 20% light intensity) when the battery is drained.
LED SOLARIS NextGen remains in this "Take Me Home" mode regardless of the position of the switch until the battery is recharged, allowing up to an hour of dive time depending on the size of battery used.
AMMONITE SYSTEM QUALITY
AMMOPOWER - top quality products and services backed by 2 year warranty (excluding batteries) which can be extended to 3 years warranty free of charge.
MORE OPTIONS WITH AMMONITE LIGHT KITS:
Ammonite light heads and batteries are interchangeable meaning you can have more than one battery and/or light head to cover all conditions. You can also choose from different light kits:
⌲ Ammonite Nautilus "Focusable" Light Kit
The bright and durable Ammonite Nautilus Focusable Light Kit with 4000-lumen output and burn times ranging from 2.5 to 10 hours allows you to smoothly adjust between a tight 9º beam to a perfectly round 45º wide beam, covering any diving condition. The kit includes light head, battery, cable, charger.
⌲ Ammonite Speleo Light Kit
The Ammonite Speleo primary dive light is made specifically for cave diving with burn times ranging from 10 to 40 hours and a depth rating of 200m. It provides 1300 lumens of light on full 100% power and has 60% and 10% backup mode settings, preserving battery life while reducing or increasing brightness. The kit includes light head, battery, cable, charger.
SOLARIS SPECIFICATIONS:
Light Output: Up to 4500 lumen
Light Distribution: 6º
Type of Optics: 5 x Reflectors
Total Power: 50W
Light Source: 5 × LED CREE® XPL
Colour Temperature: Cool White
Material: Hard annodised aluminium / Delrin
Switch Type: Magnetic switch, 3 level intensity, discharge warning, backup mode
Max. Length: 117mm
Max. Diameter: 61mm
Front Glass: 6mm tempered glass
Surface Weight: 340g
In-water Weight: 130g
Max. Operating Depth: 200m
ACCU 10Ah SPECIFICATIONS:
Battery Type: Li-Ion
Voltage: 10.95 V
Capacity Nominal: 10 Ah
Capacity Rated: 9.6 Ah
Charge/Discharge Cycles: 500-700
Charger Input Voltage: 100-240 V
Charging Time: ~4 h
Material: Aluminium Alloy - Anodised
Max Diameter: 46 mm
Max Length: 247 mm
Max Operating Depth: 200m
Over Pressure Valve: Yes
Surface Weight: 705 g
In-Water Weight: 450 g
Safe for Air Transport (UN/DOT 38.3): Yes
ACCU 14Ah SPECIFICATIONS:
Battery Type: Li-Ion
Voltage: 10.95V
Capacity Nominal: 14 ah
Capacity Rated: 13.4 Ah
Charge/Discharge Cycles: 500-700
Charger Input Voltage: 100-240 V
Charging Time: ~4.5 h
Material: Delrin/Aluminium Alloy - Anodised
Max Diameter: 66 mm
Max Length: 200 mm
Max Operating Depth: 150 m
Over Pressure Valve: Yes
Surface Weight: 1100 g
In-Water Weight: 750 g
Safe for Air Transport (UN/DOT 38.3): Yes
ACCU 24Ah SPECIFICATIONS:
Battery Type: Li-Ion
Voltage: 10.95V
Capacity Nominal: 24 ah
Capacity Rated: 22.4 Ah
Charge/Discharge Cycles: 500-700
Charger Input Voltage: 100-240 V
Charging Time: ~8 h
Material: Delrin/Aluminium Alloy - Anodised
Max Diameter: 66 mm
Max Length: 258 mm
Max Operating Depth: 100 m
Over Pressure Valve: Yes
Surface Weight: 1400 g
In-Water Weight: 600 g
Safe for Air Transport (UN/DOT 38.3): Yes
