Santi Drysuit Connector
Santi Drysuit Connector connects Santi Heated Vest, Gloves or Undersuit to the battery using your existing drysuit inflation valve on top of the unit. E/O cord connector passes through a standard suit inflation valve and provides power connection from the external battery to a heated product under the drysuit.
Dispatched in 1 to 2 days
Santi Drysuit Connector connects your Santi Heated Vest, Gloves or Undersuit to the battery using your existing drysuit inflation valveon top of the unit (Apeks or SiTech).

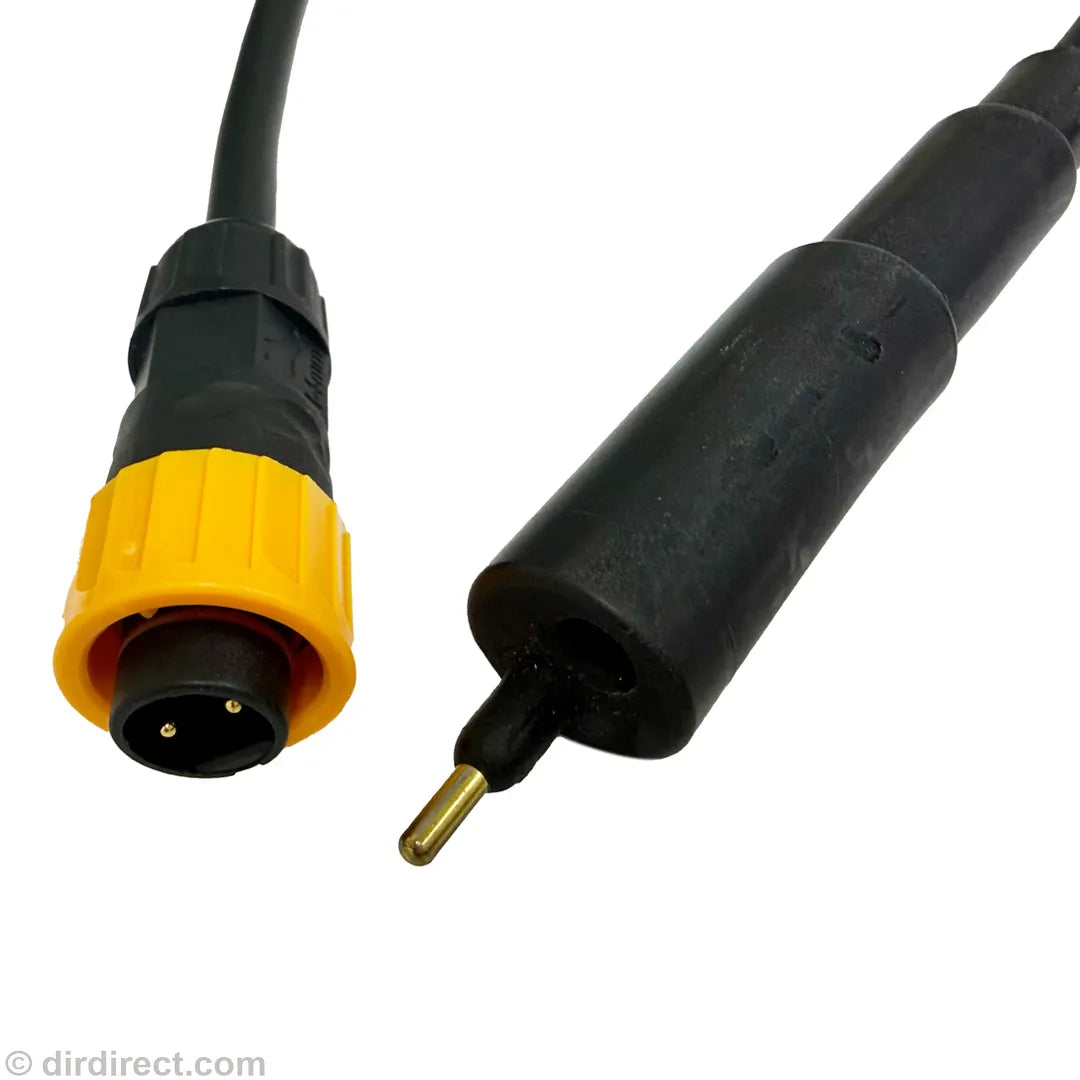

E/O cord connector passes through a standard suit inflation valve and provides power connection from the external battery to a heated product under the drysuit.
Learn more: Santi Heating System Manual
- Height: 19mm + standard drysuit inflation valve
- Total length of the cables including 55 cm
- Available in two diameters: Apeks or Si-Tech
- Works with power supply no higher than 12V

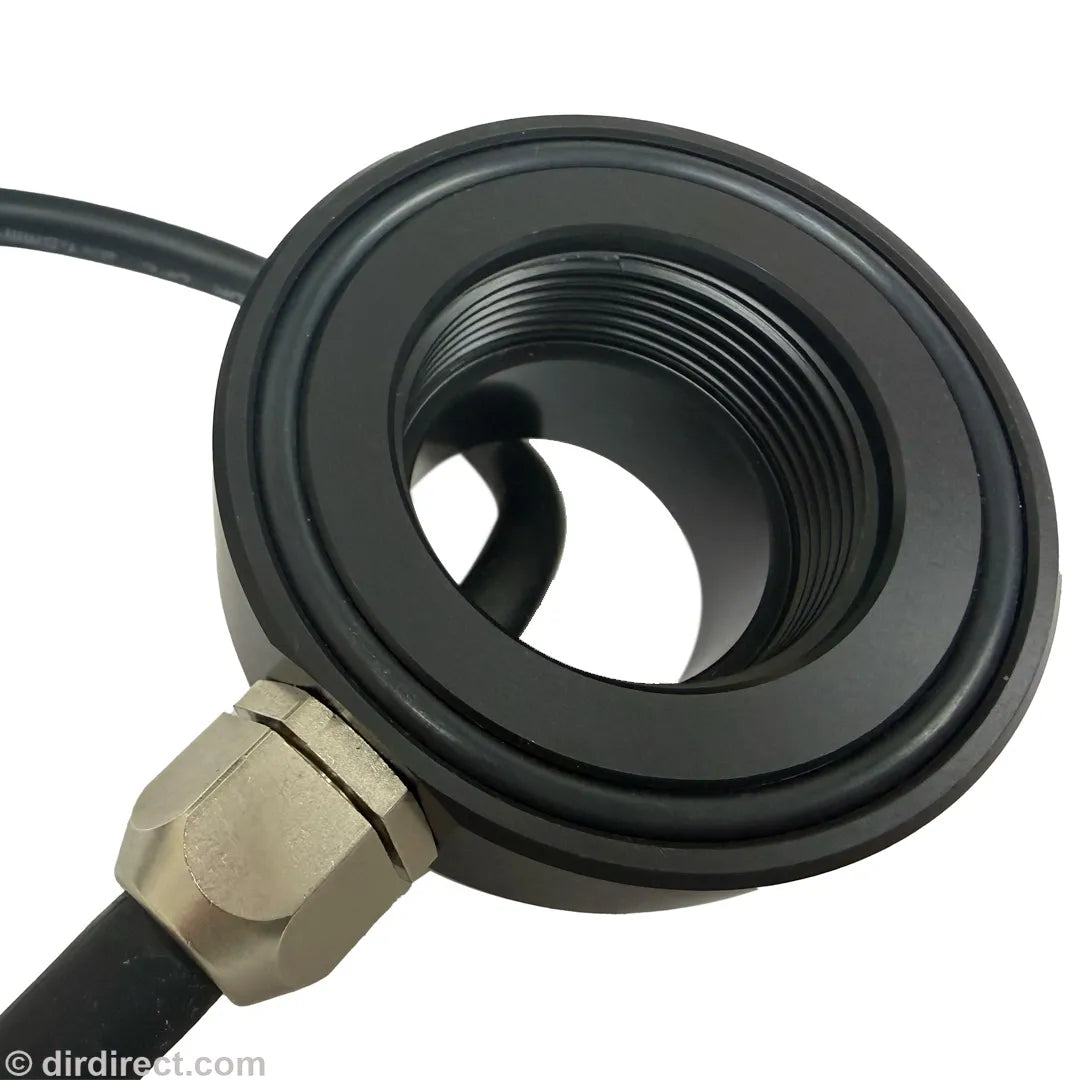

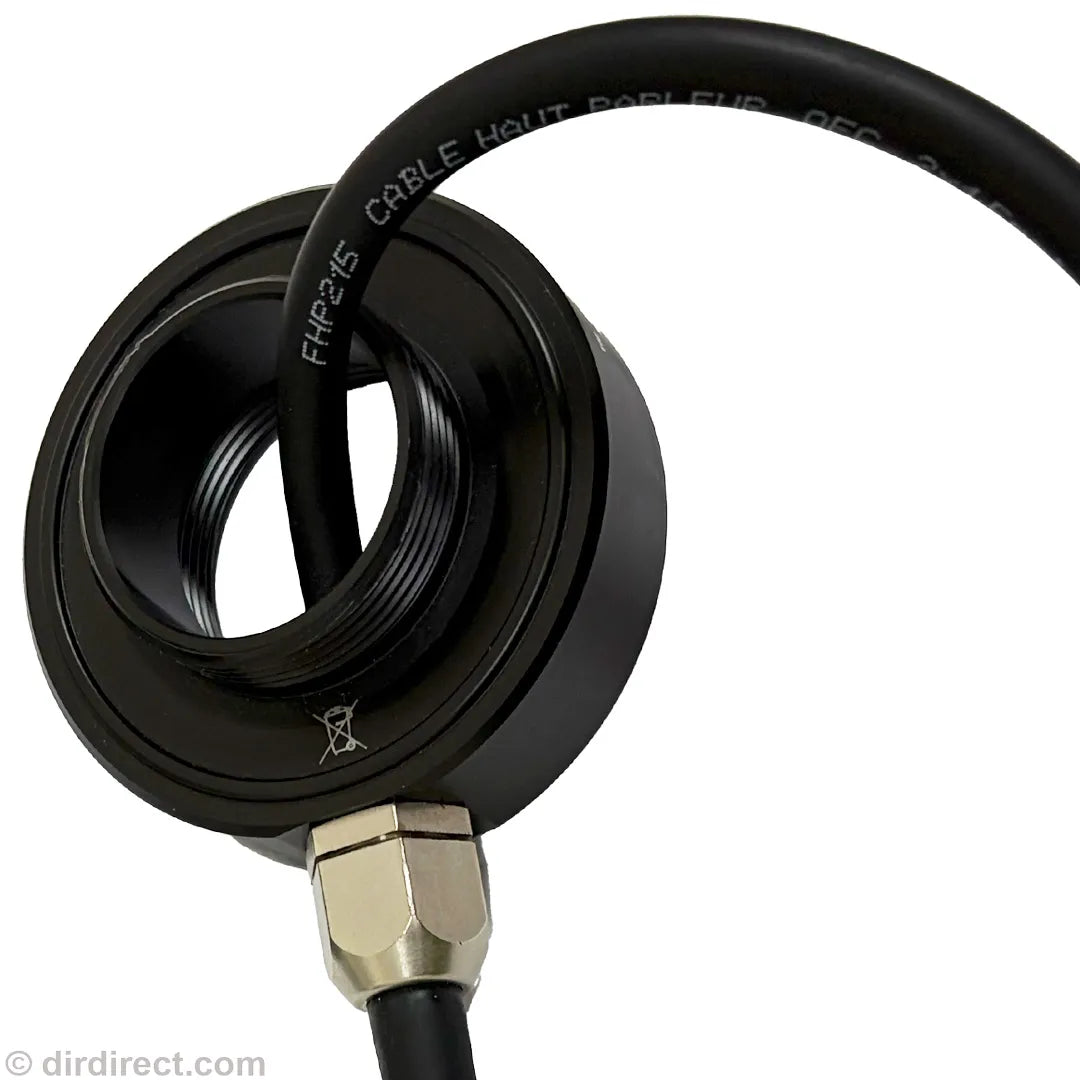

Once your Sitech or Apeks drysuit inflator valve is removed, the Santi Drysuit Connector is placed and secured in the drysuit valve hole. The cables run through the connector.
The existing drysuit valve is then screwed on top of the connector. Select which (Sitech or Apeks) valve you currently have under options as the diameter will be different.
Photo below depicts how the drysuit inflator (not included) fits into the SANTI connector. Screw threads seen underneath are inside the drysuit. Drysuit inflator valve in picture not included - You are required to use your existing valve with the Controller.
Below is a side-by-side comparison of the SANTI Drysuit Connector (Right) with drysuit inflate valve attached and the all-in-one lower profile SANTI Thermovalve (left) where the drysuit inflator and the connector are an integral part of the thermovalve body and there is no excess height. Please note the drysuit inflator valve shown on the right is not included.
SANTI Heating Systems Explained
