Halcyon Eclipse Deluxe Single Tank Wing System

Halcyon Eclipse Deluxe

The Halcyon Eclipse Deluxe Single Tank Wing System is not your typical buoyancy compensator. It offers an unparalleled performance of a back-mounted harness and the easy adjustability of a jacket BC for single-tank divers.

The Eclipse Deluxe's most distinctive feature is the novel Cinch Quick-Adjust Harness, which redefines what it means to dive a backplate, providing unparalleled comfort and stability with infinite adjustability.

The Halcyon Eclipse Deluxe BC, formerly known as the Infinity, features Halcyon’s immensely popular Eclipse wing. This long, narrow profile supports a diver’s tank along its entire length, reducing unnecessary drag and minimising in-water effort.


• Infinite adjustability in the blink of an eye
• Snug, stable fit with easy removal
• Easily adjustable while in or out of water
• Easily convertible for suits of varying thickness
• Unit weight: Ali 5.0kg / SS 6.5kg

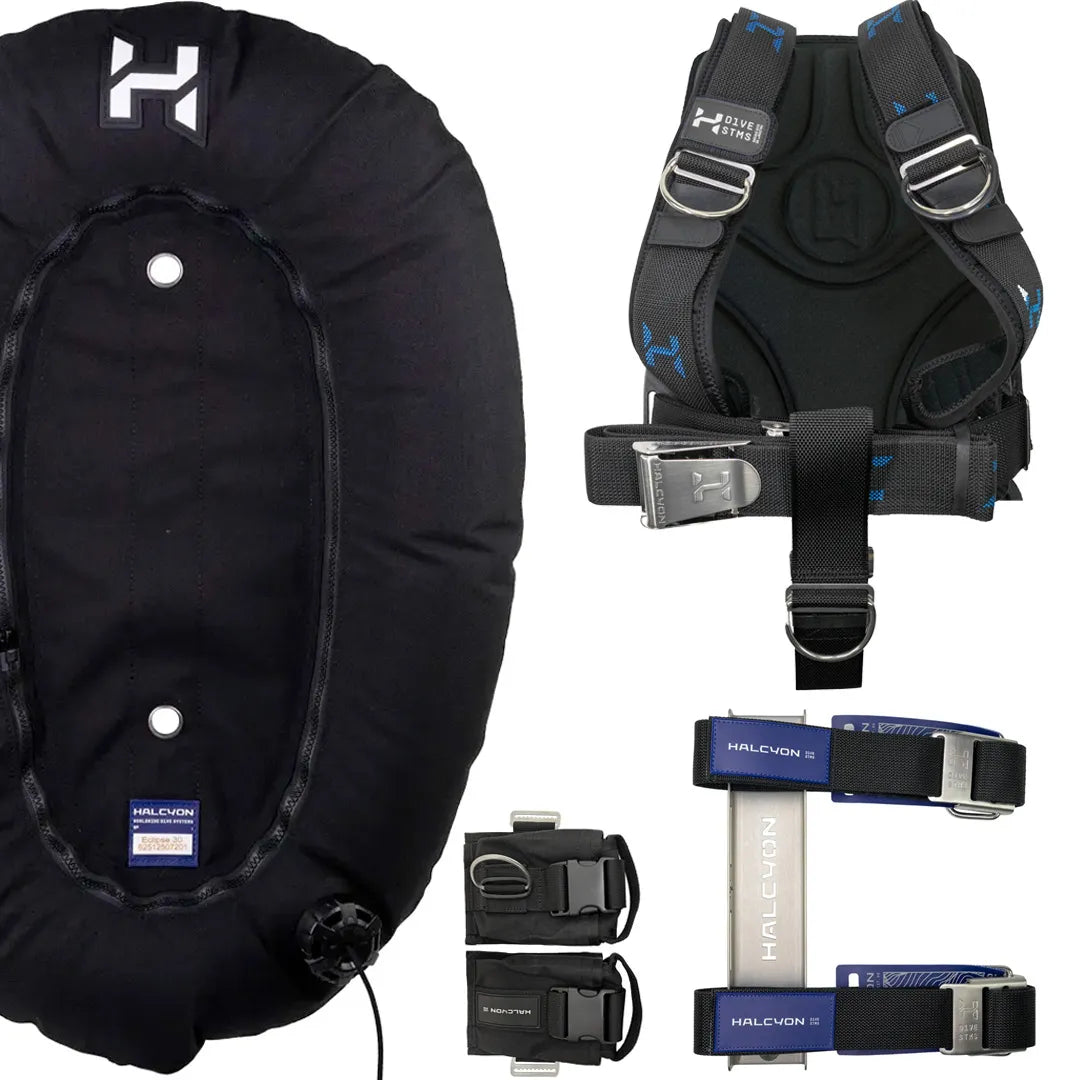

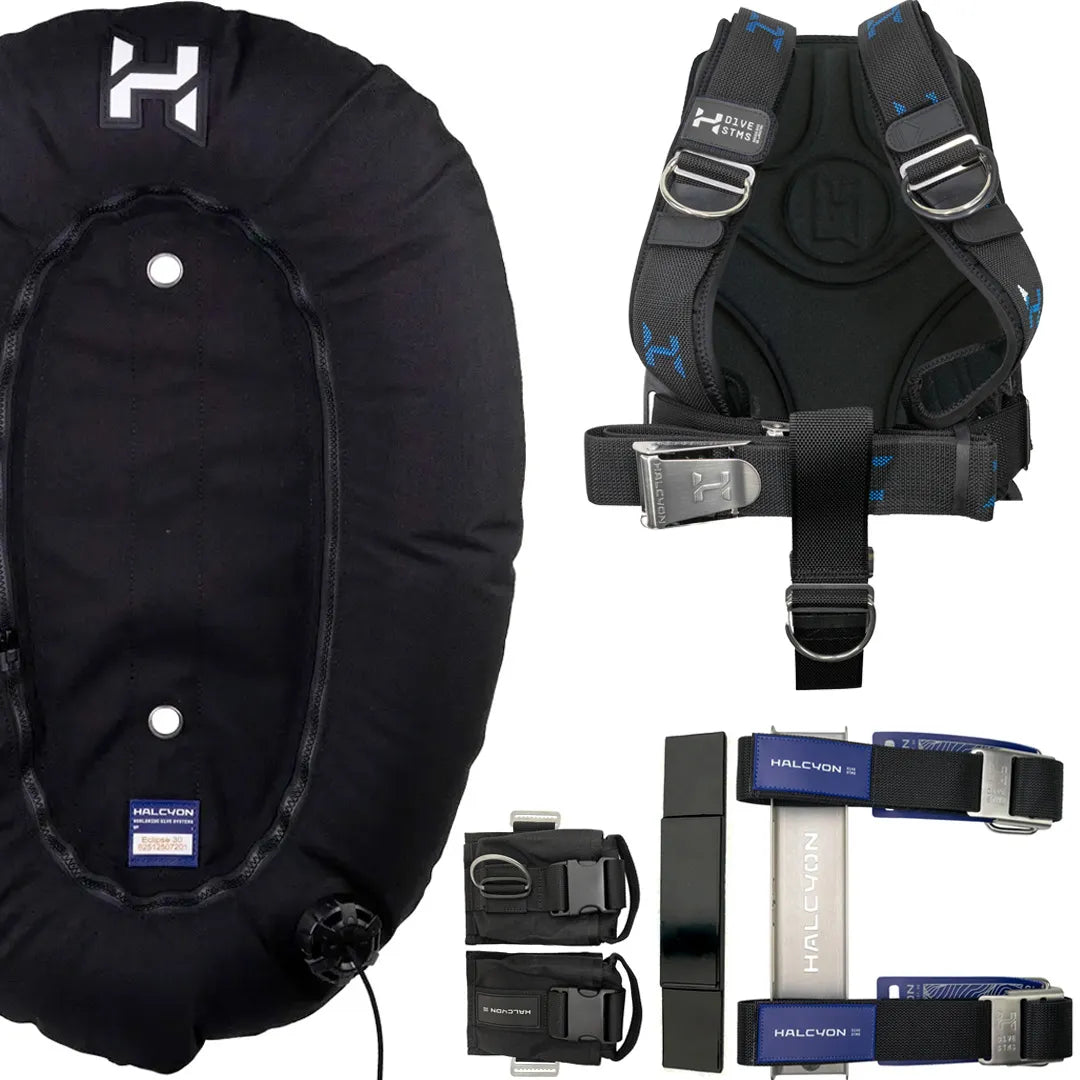

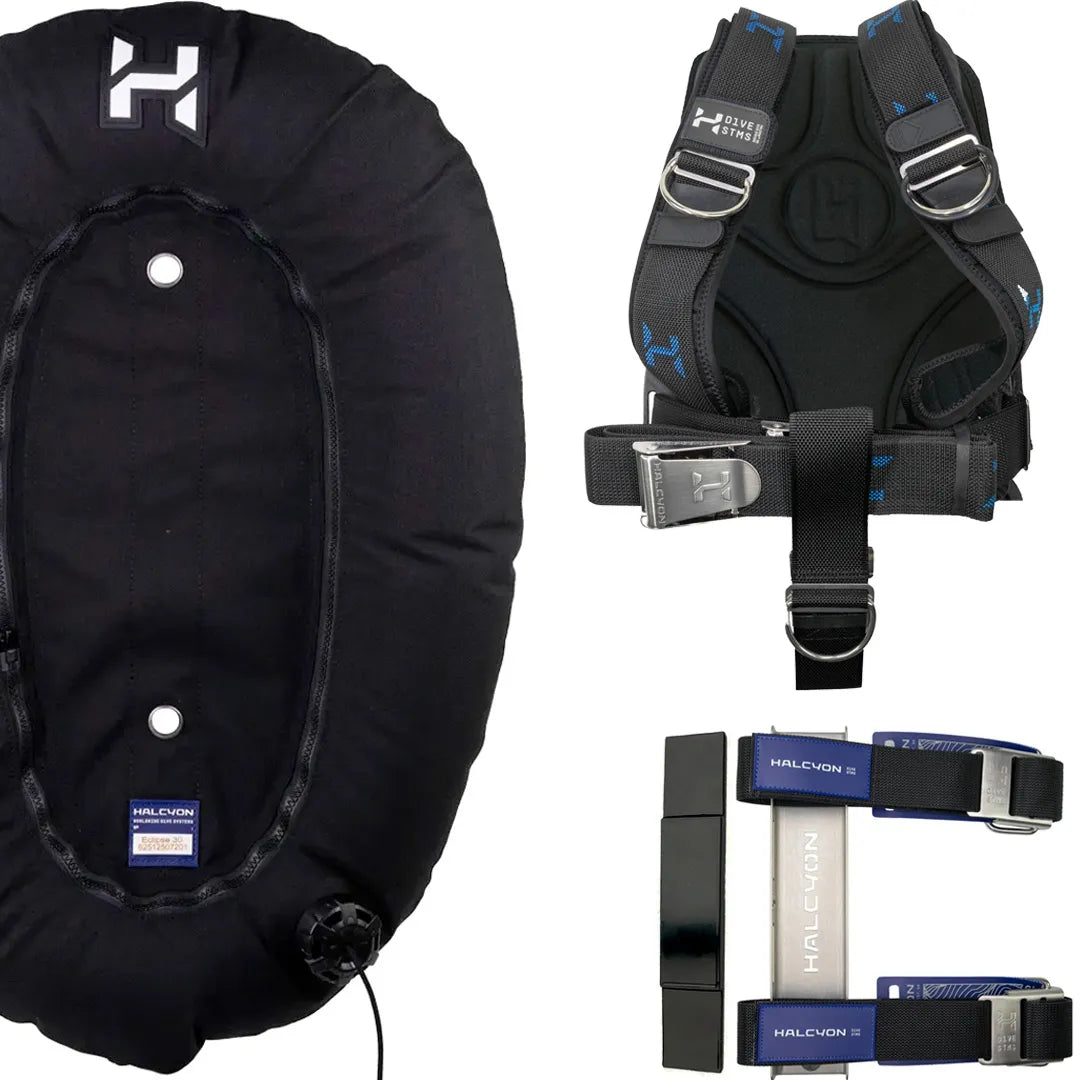

Halcyon Eclipse Deluxe Single Tank Wing System includes

• Halcyon Eclipse Wing (20lbs, 30lbs or 40lbs) with 22" Inflator hose
• Halcyon Ali or SS Backplate with Adjustable Cinch Harness
• Halcyon Single Tank Adapter with SS buckles
• Halcyon Deluxe Shoulder Pads and Halcyon Deluxe Backplate Pad

• Halcyon Traverse Bag

Optional components

• Halcyon ACB Weight Pockets
• Halcyon Single Tank Adapter weight

Halcyon Eclipse Wing

The Halcyon Eclipse Wing is a doughnut-shaped back-mounted Buoyancy Compensator (BC) that allows divers to achieve perfect horizontal trim underwater and reduces in-water effort.

The Eclipse Wing is available in three lift capacities to maximise comfort and streamline movement, considering different buoyancy needs based on cylinder size, exposure protection, or equipment requirements.

A circular zipper around the inside of the Eclipse wing allows for easy inspection and replacement of the interior bladder if required. A drainage system at the bottom of the wing allows water to drain rapidly from the outer cover, minimising excess weight.

An inflator elbow strain relief constructed from two-inch nylon webbing minimises wear on this connection.

Which wing size?

The Halcyon Eclipse wing comes in 20, 30 and 40lbs lift capacity and the amount of lift required by a diver depends on his/her kit configuration. Stretched out flat the Eclipse 30 measures 67cm x 46cm compared to the Eclipse 40 which is 70cm x 50cm.

The 30lbs wing is more suitable for a lighter profile diving rig such as a single 12L steel cylinder whereas the 40lbs is ideal for divers who want that "extra bit" of lift for emergency assistance or to carry heavier cylinder setups like a 15L cylinder.

• Lifetime warranty on inner bladder RF welded seams
• Available in three lift capacities: 20lbs, 30lbs and 40lbs
• Outer shell 1680-denier ballistic nylon / Inner bladder 400-denier Nylon

Halcyon Backplate with Cinch Harness

The Halcyon Backplate with Cinch Adjustable Harness comes with either a steel or aluminium backplate. The Halcyon’s novel cinch harness kit is factory fitted to the backplate of your choice. Now you can adjust a harness in a flash.

Now you can change suits or divers and adjust the harness in a flash without compromising the harness integrity or Halcyon’s trademark, continuous webbing.

Adjustments to the Halcyon Cinch Adjustable Harness occur by simply sliding the harness through a unique assembly. You can even easily adjust the fit in or out of the water with a simple push or pull.

Halcyon backplates have been refined to provide the highest-quality finish and materials available. Small details, like the unique bends near the bottom of the plate, create an ergonomic curve, increasing diver comfort. Meanwhile, the precise fabrication process ensures the quality you have come to expect from Halcyon.

Which backplate to use?  While not set in stone, aluminium backplates are generally preferred by travelling or wet suit divers as they are lighter than their stainless steel counterparts. The popular backplate for drysuit diving is stainless steel, where the additional weight is a benefit (spreading out the weight needed to compensate for buoyancy while taking it off the diver's waist).

• High-grade, polished 304 stainless steel or hard-coat aluminium
• Bare backplate weight: Steel 2.22kg / Ali 0.77kg
• Size: 26cm x 39.3cm

Halcyon Single Tank Adapter

The stainless steel Halcyon Single Tank Adapter is designed to attach a backplate and single wing to the single cylinder. The secure cam bands come with stainless steel buckles and Octogrip Pads to prevent sliding.

The Halcyon Single Tank Adapter plate itself is deep enough to add an optional weight. This optional 6lbs central weight can be removed if not required making it back to a standard single tank adapter.

Halcyon Deluxe Shoulder and Backplate Pads

Halcyon Deluxe Shoulder Pads and a Backplate Pad offer ultimate comfort while diving in thinner exposure suits.

 Adjustable Shoulder Pads feature movable Velcro tabs for a custom fit around the shoulder D-ring, and harness accessories (e.g. backup light).

The backplate pad also features a storage pocket allowing the diver to carry a surface marker or lift bag in a streamlined position.

Optional Halcyon ACB Weight System

The integrated Halcyon ACB Weight System pockets are an ideal solution for divers seeking quick-release weight. Each weight pocket can hold up to 5lbs/2.3kg soft or hard weights.

The vertical orientation consumes less space, and the side-release buckle prevents accidental weight loss while allowing quick release. The removable weight pouch features an easy-carry handle.

A simple tri-glide connection secures the ACB pockets (Active Control Ballast) on the harness waistband and allows the mounting of a primary light behind.

What is the difference between a wing and a BCD?

The low-drag wing design distributes air evenly across the diver's back, keeping the wing portion of the compensator unobtrusive and providing exceptional streamlining during a dive.

There are no air-inflated side panels or pockets as on traditional 'jacket-type' BCs, which avoid the "legs down" position often caused by air on the sides and front of the diver.

There are no restrictions on the diver's chest, making it very comfortable with no chest compression and allowing one size to fit all without hassle.

The advantages of a wing system over a "jacket type" BC are numerous. The Halcyon Eclipse Wing System depends on a one-piece webbing harness looped through a sturdy aluminium or stainless steel backplate that should last many lifetimes.

Once donned, a webbing crotch strap can be utilised to keep the whole system in place with minimum movement.

The continuous loop harness stops the annoying lack of control common with standard buoyancy compensators. Once the suit is fitted to your size and fit, nothing can break or come loose.

Why Choose DirDirect?

• Pioneering Halcyon in the UK: For nearly 25 years, we've been the UK's premier Halcyon dealer, leading the way by being the first to import and invest in their dive systems. Our consistent award-winning performance speaks to our deep expertise.
• Extensive Halcyon Inventory: Visit our dedicated technical diving and Halcyon showroom at our physical store to explore the UK's largest in-stock selection of world-leading diving products.
• Shared Diving Philosophy: Our unwavering commitment to Halcyon stems from a shared dedication to cutting-edge technology and the enduring diving ethos they established, which many training agencies are now implementing.

Download the Halcyon Buoyancy Compensator Owners Manual

Confused on which wing to buy? Read our review on the Best Single Tank Wing Systems where we explain commonalities and differences comparing this wing to the other top wing systems.
