Suex Sinapsi is the first waypoint navigation system in the form of a special nose that replaces the standard nose of your Suex XJ-S and XK model DPV, allowing you to maintain constant orientation while diving. The Sinapsi nose allows for route planning, records your route and ensures you reach every target and safely return to base.
Suex Sinapsi is a special nose for navigation that replaces the standard Suex scooter nose. It has sophisticated electronics to receive and process underwater navigation data acquired via DPV.
The Sinapsi project has required years of increasingly sophisticated research, including many tests and trials to optimise the system using the most exciting, up-to-date technological solutions.

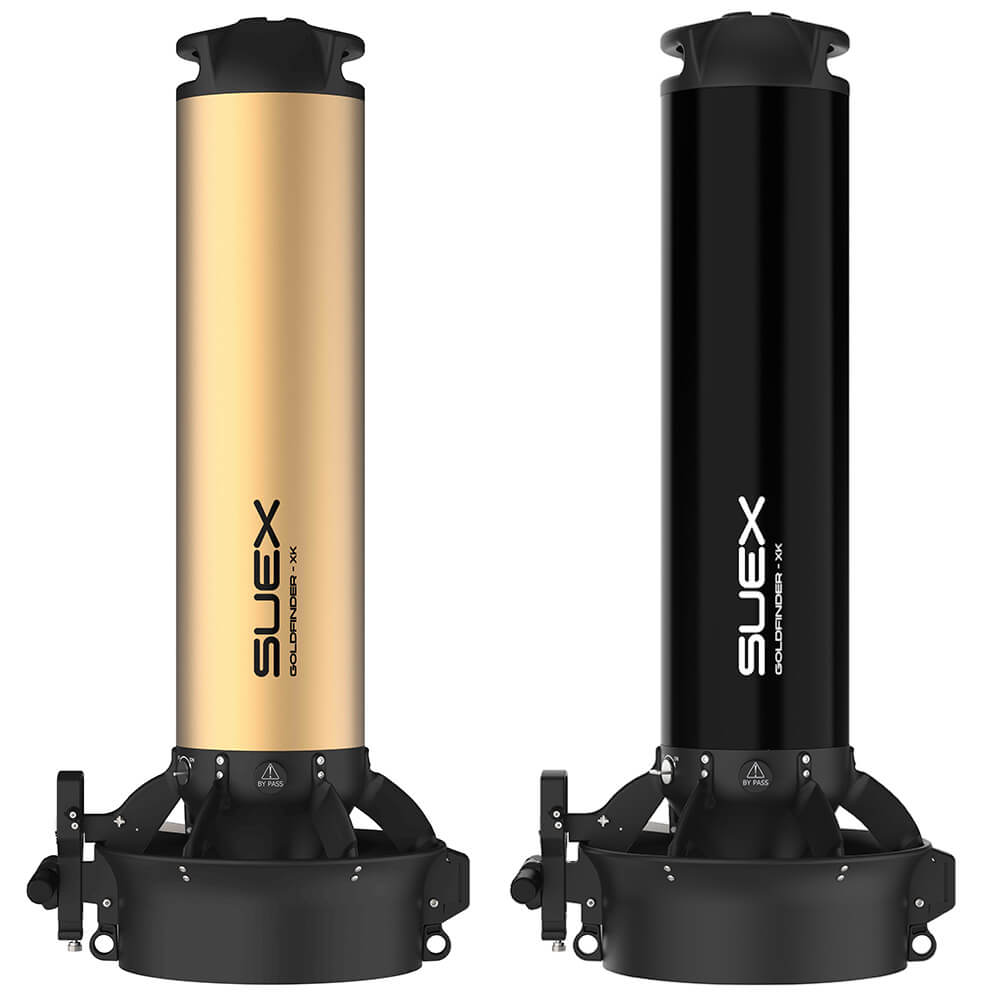

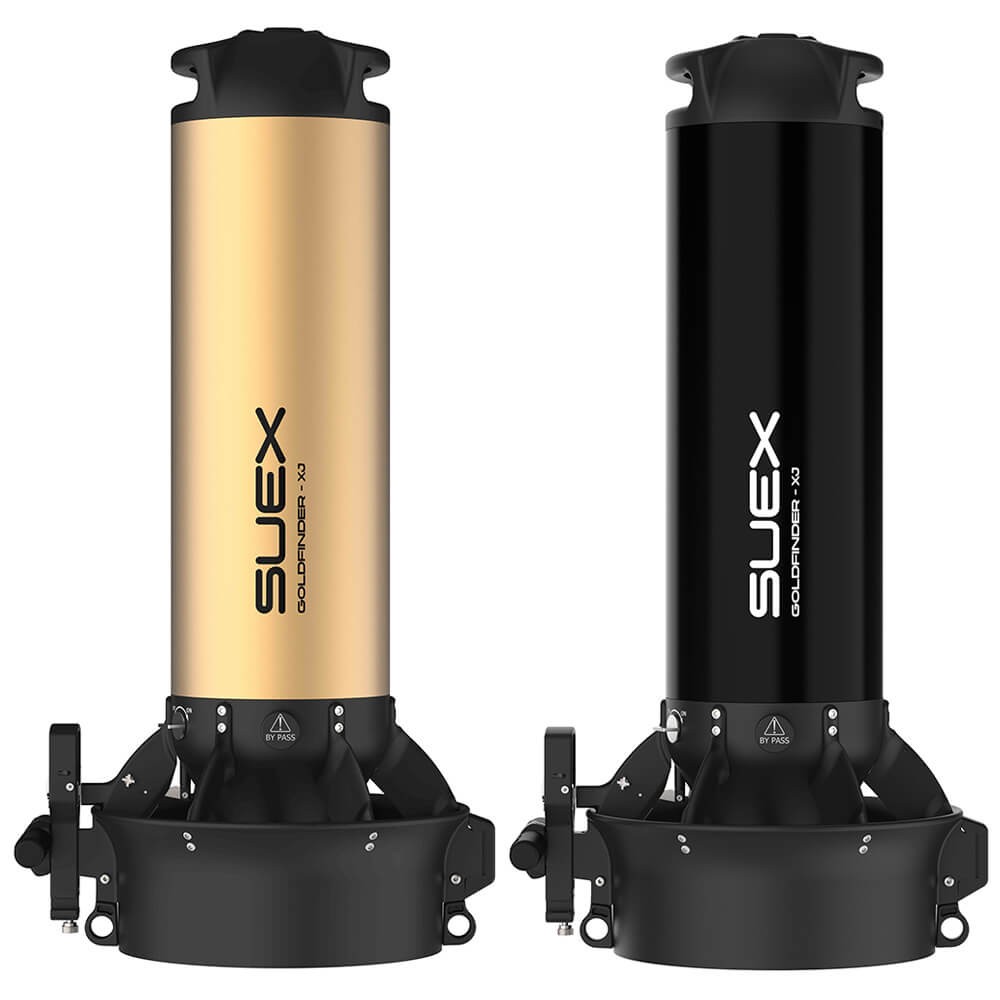

Sinapsi is available for the Suex XJ-S and XK scooters.
The integrated propeller into the system allows you to calculate the speed and, consequently, the distance travelled or missing to the point of arrival.
Suex Sinapsi features
Route planning via smartphone app and PC
Use GNSS Position – Home Position
On-the-fly route planning
Heading quality index
Compass calibration and quality storage
Odometer calibration and distance and speed measurement
Accurate heading angle
Connection with Suex ERON-D1

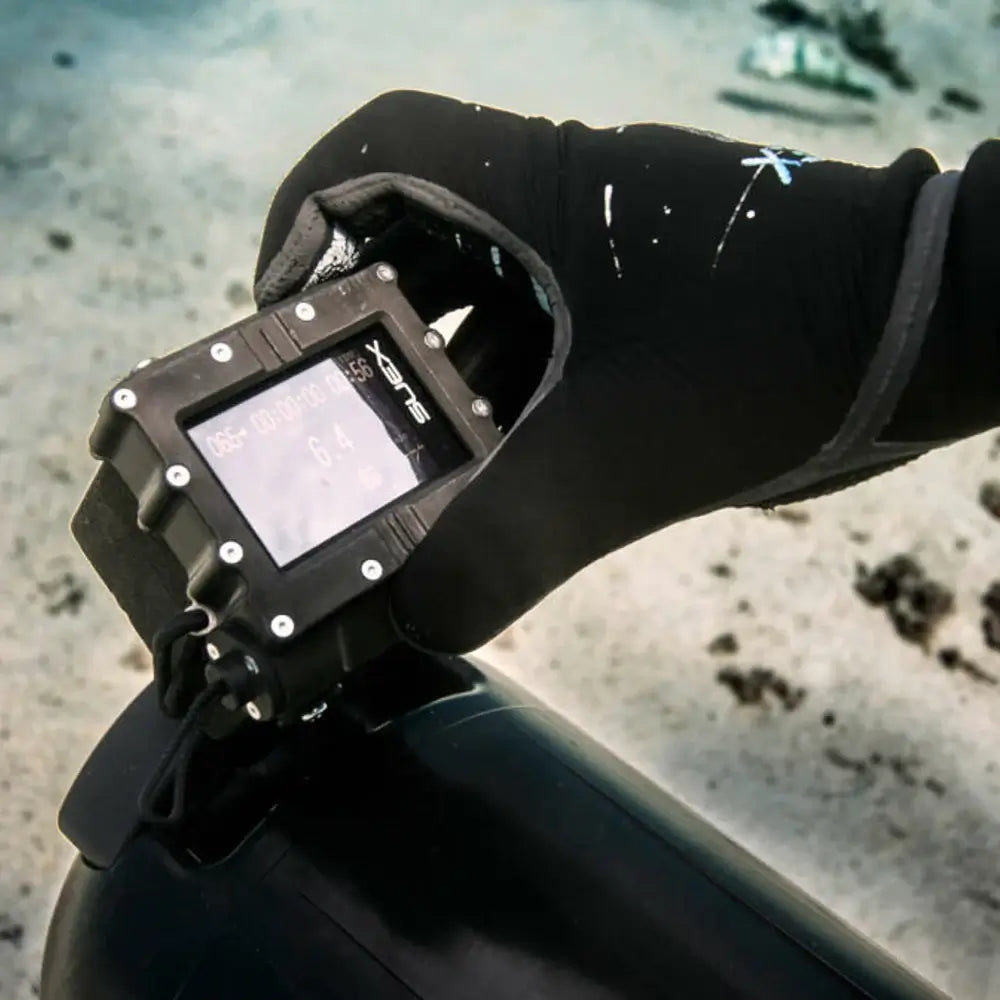

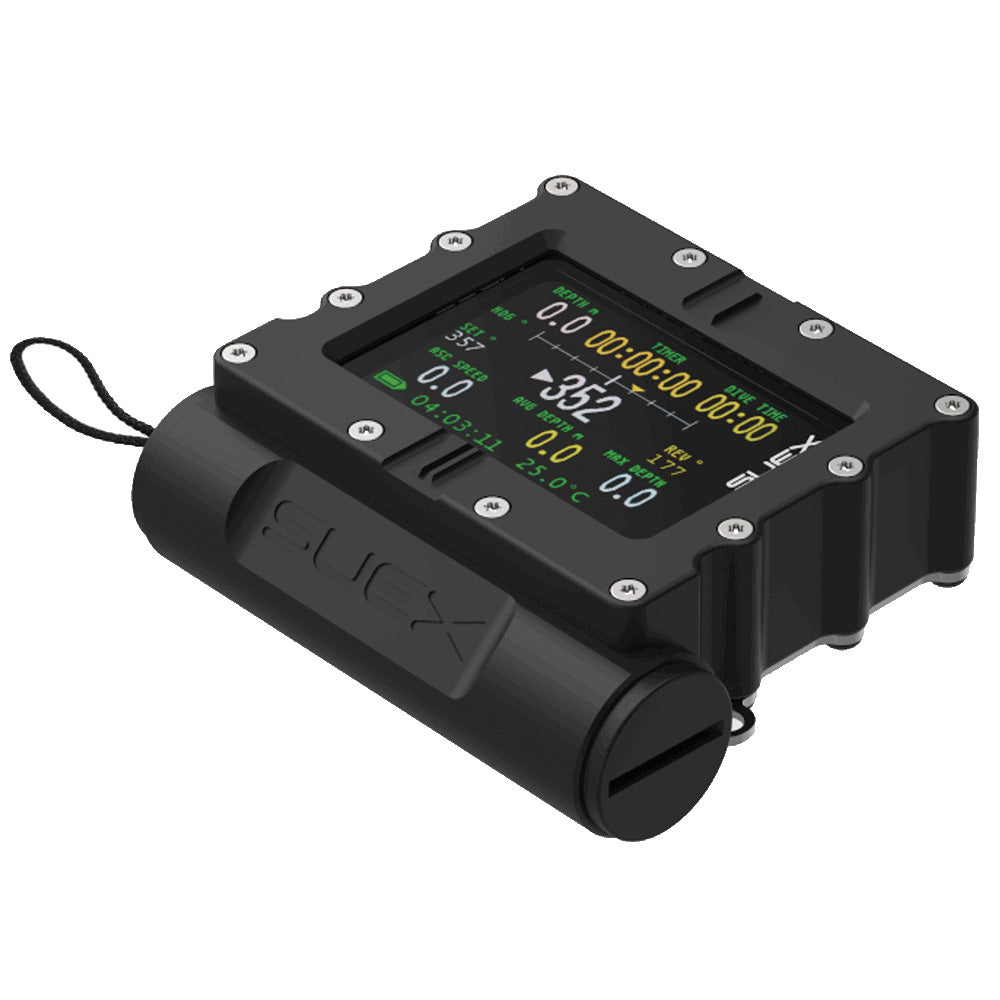

The Suex Sinapsi nose cannot be used without a Suex ERON D-1. The ERON D-1 is the necessary user interface to access most Sinapsi functions and settings.
Used in conjunction with the ERON D-1 underwater dashboard, Suex Sinapsi is able to provide the customer with the most accurate underwater navigation. During operation, the Sinapsi nose transmits the navigation data to the ERON D-1, via a wireless connection, and the telemetry data from the scooter. Finally, it also records the data of the scooter battery together with the navigation data.
From a conceptual point of view, Suex Sinapsi exploits the potential of the AHRS system (Altitude and heading reference system) and GPS (Global Positioning System) to determine the current position of the scooter at all times.
It indicates that an operative procedure, a condition etc. must be pointed out. From the physical operating point, the AHRS processes signals from the three main physical systems mounted on board:
- Distance log
DPVs equipped with Suex Sinapsi and ERON D-1 can access the extended mode of the dashboard: recording of dive time, depth, heading and other data, full analysis of DPV data and full navigation data.
Check out the Technical Information tab above for specifications.
|Weight without battery||14kg|
|Weight with battery||20kg|
|Material Type||Aluminium Body|
|Max Static thrust||N 330 (lb 74.2)|
|Run time range||Full Trigger: 35min, 2.4km range|
60-2 Knots: 50min, 2.9km range
45-Cruise: 75min, 3.2km Range
|Run time at cruise speed||95min|
|Maximum operational depth||200m (tested to 300m)|
|Buoyancy/ trim||Neutral Trim and Buoyancy|
|In-water usage temperature||-5/+35°C|
|Nominal Voltage||26.4 Volt|
|Nominal Capacity||370 Wh|
|Maximum recharging time||8 hours|
|Charger power supply||Volt 90/240 - 50/60HZ|
|Suex DRIVe System||NO|
|New Handle Design||NO|
|Sealed Motor Compartment||YES|
|NBS - Neutral Buoyancy System||YES|
|Made Salt Resistant||YES|
- Top speed is delivered with fully charged battery
- Diver: 70kg weight, 170cm high - drysuit - double 12L tank - horizontal trim
- Conditions: sea water - no flow/current
