SportDiver Ultra Duo 5000 Set for iPhone & Android
Dispatched in 5 to 10 days
Capture vivid colours with the SeaLife SportDiver Ultra Duo 5000 Set. This ultimate underwater smartphone housing includes two powerful 2500-lumen lights.
SeaLife SportDiver Ultra Duo 5000 Set
The SportDiver Ultra Duo 5000 Set is the ultimate underwater smartphone housing and light system. This setup combines the SportDiver Ultra housing with two powerful Sea Dragon 2500 Photo-Video lights. Additionally, it includes the Flex-Connect Ultra Dual tray with two comfortable grips.
Consequently, this premium housing and light set arrives completely ready to dive. For optimum performance, you can also add optional lenses and handy SeaLife Flex-Connect arms. These optional arms add 8 inches of versatile lighting control between the grips and the light heads.
Furthermore, the SportDiver Ultra stands out as the leading underwater smartphone housing. This is because it securely and continuously safeguards your phone during your dive. Moreover, it features intuitive camera controls similar to those found on sophisticated, high-end DSLR cameras.
Highlights & Details
Two Powerful Sea Dragon 2500 Lumen Lights Included – This system features two brilliant, colour-enhancing wide beam lights spanning 120° each. Specifically, the SportDiver Ultra mounts to the roomy Ultra Dual Tray and includes two grips. These brilliant lights deliver incredible brightness, each producing up to 2500 lumens with a warm 5000 Kelvin colour temperature. Therefore, the two lights effectively prevent shadows.
ScubaLab Tester's Choice – PADI Scuba Diving Magazine’s ScubaLab editors recently selected the SeaLife SportDiver Ultra as their "Tester’s Choice." Of the six underwater phone housings tested, editors awarded this model the top pick.
Safe & Secure – The larger SportDiver ULTRA housing fits most Android models and iPhone 10 & up. It keeps your phone safe for deep dives down to 130 feet using a robust cam-lock sealing mechanism. Inside, an interior tension spring and rubber grip tabs hold your phone in place while adding crucial shock protection. If you fail to seal the case correctly, audible & visual moisture & pressure sensors will quickly notify you. Finally, an anti-fog Moisture Muncher capsule prevents internal fogging.
See Colours as They Really Are – Your images will look like the work of a professional underwater photographer. This remains true whether you use the Sea Dragon 2500F lights or the included filter on the SportDiver ULTRA housing. Advanced COB LED technology features a high Colour Rendering Index of 90, closely mimicking natural sunlight. As a result, you will only see vivid, natural colours instead of washed-out blue pictures.
Easy Access & Simple to Use – The SportDiver camera controls maintain the normal way you take pictures. You retain full access to popular camera control settings including Zoom, Focus, White Balance, Tint, and Lens selection. Thus, you can easily switch between photos and video. Additionally, the housing now offers 7 convenient mounting points to connect the Flex-Connect Tray and accessories. It also features a large shutter lever for easy picture taking with gloved or bare hands.
Individually Tested – Your phone is invaluable due to your irreplaceable pictures, music, messages, and emails. Because of this, we carefully test every single case before packaging it. We also know things get lost easily. Therefore, we include extra rubber grip tabs and spare O-rings for the housing and Vacuum Check Port. The package also provides O-ring lubricant, a removal tool, an extra Moisture Muncher Capsule, a travel case, a deluxe wrist strap, and two AAA batteries.

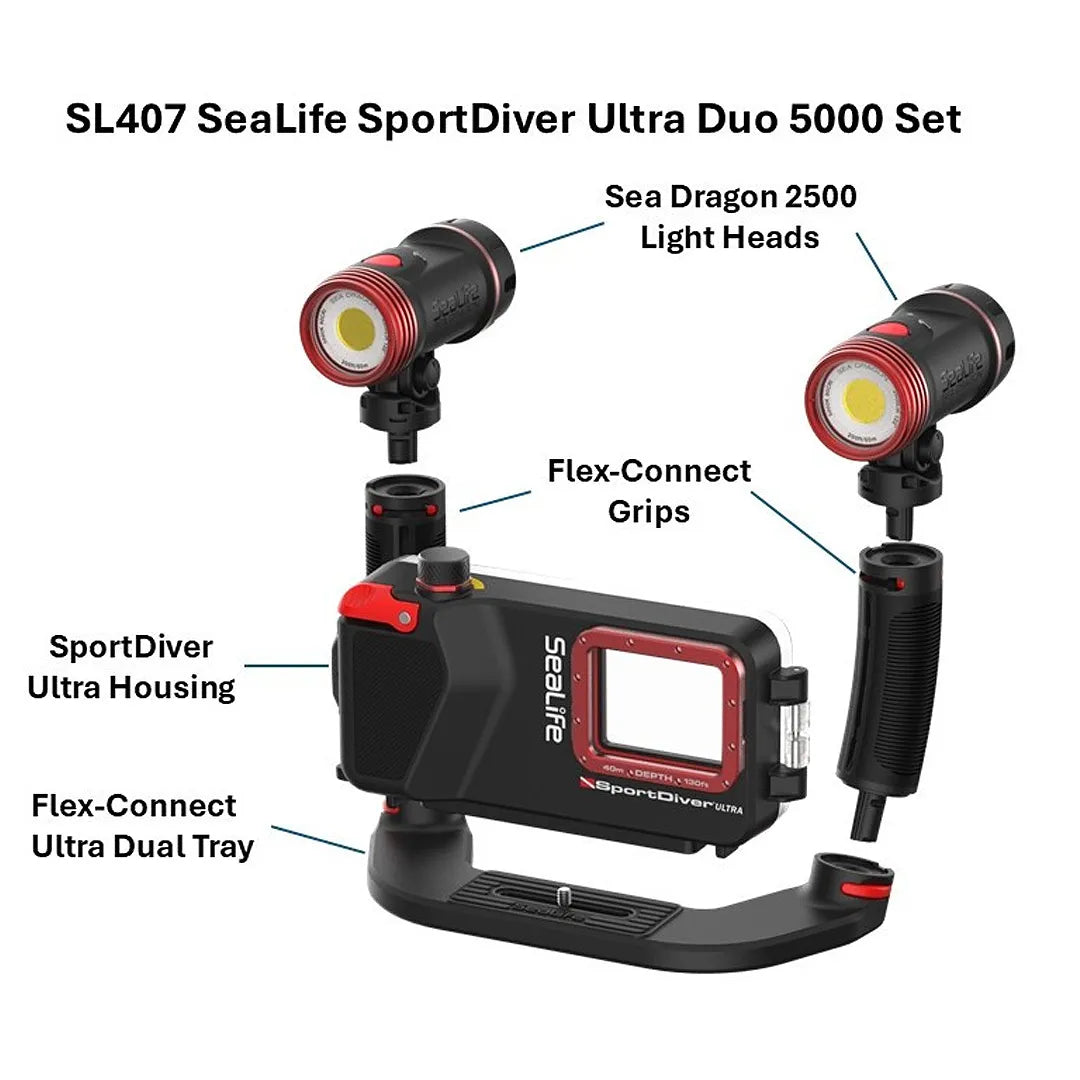

What's Included?
- SportDiver ULTRA Underwater Smartphone Housing
- Red colour-correction filter
- Vacuum pump
- Rubber Grip Tabs (12x Small, 12x Medium and 12x Large)
- Spare O-rings (1x Main O-ring and 1x Vacuum Check Port O-ring)
- O-ring lubricant, O-ring removal tool
- Deluxe wrist strap with clip
- Moisture Muncher sample pack (1 capsule)
- Anti-glare foam strips (3)
- AAA alkaline batteries (2)
- EVA carry case for SportDiver Ultra
- Two Sea Dragon 2500 Underwater Photo/Video Light heads (2)
- Flex-Connect Ultra Dual Tray w/ standard ¼-20 mounting screw
- 2x Flex-Connect grips
- 2x Li-Ion rechargeable batteries
- 2x AC Sea Dragon battery chargers & international plug adapters (2 ea. UK, EU, AU)
| Feature | Details |
| Free App Name | SportDiver – in App & Play stores |
| Compatible Phones | Works with Apple iPhone®, Samsung Galaxy, and most other Android phones. See compatibility chart. |
| Depth Rating | 40 m |
| Power | 2x AAA batteries (alkaline or NiMH) |
| Battery Life | 50 hours |
| Two LED Indicators | Leak Alarm pressure indicator: |
| – Flashing green: Vacuum pressure not applied | |
| – Solid green: Vacuum pressure okay | |
| – Flashing red: Leak detected | |
| Power / Wireless Connection Status: | |
| – Flashing blue: Powered on, not wirelessly connected | |
| – Solid blue: Powered on, wirelessly connected | |
| Wireless Technology | Bluetooth® Low Energy (LE) |
| Controls | Shutter, Mode, Up (Zoom / Focus +), Down (Zoom / Focus -), Playback, and Camera Settings |
| Operating Temperature | 31°C to 43°C |
| O-rings | Silicone Main Seal and Vacuum Check Port O-ring |
| Lens Port | Optical glass lens port with anti-reflective coating applied to the inner lens surface. |
| Lens frame allows attachment of a colour-correction filter while underwater. | |
| Same lens port dimensions as the SportDiver SL400, so filters and lens accessories are compatible. | |
| LCD Window | Optical grade polycarbonate full-screen display window. |
| Tripod Mount | Seven standard ¼-20 tripod threads to attach accessories. |
| Lanyard | SeaLife deluxe padded lanyard with swiveled attachment clip. |
| Construction | Polycarbonate housing with 304-316 stainless steel and hard-anodized T6061-grade aluminum metal hardware. |
| Dimensions | External: 23.1 cm x 12.4 cm x 6.1 cm |
| Internal: 18.3 cm x 8.0 cm x 1.2 cm | |
| Weight | 808g UW housing – with batteries, red filter, and Moisture Muncher (without phone) |
| Buoyancy | Positive 150.4 g UW housing only – with batteries, red filter, and Moisture Muncher |
| Subtract weight of phone to calculate total UW buoyancy in seawater. | |
| Warranty | 1-year limited warranty or longer depending on local government regulations. |
| Certification | CE, ROHS, FCC (FCC ID: 2ACKF-SL405) |
| SportDiver App for iOS and Android | |
| Modes | Description |
| Photo | Push shutter to capture image |
| Video | Push shutter to start/stop video recording |
| Settings Menu | Adjust camera settings (See below) |
| Playback | View photos and videos |
| iOS Settings | Description |
| Lens | Ultrawide, Wide, Telephoto and Triple (Depends on iPhone model) |
| Focus | Automatic or Manual |
| White Balance (WB) | Auto, UW Deep, UW Shallow, Manual (3000K to 8000K) in 100K increments |
| Temperature (WB) | When WB is set to Manual, adjust colour temp between 3000K to 8000K in 100K-step increments |
| Tint | When WB is set to Manual, adjust colour tint between +150 to -150 in 10-unit increments. iOS only |
| Exposure Value (EV) | -3.0 top +3.0 in .3 stop increments |
| Aspect Ratio | 4:3 or 16:9 |
| Image Format | JPEG, HEIF, ProRAW, ProRAW+JPEG, ProRAW+HEIF |
| Image Resolution | 12MP or 48MP. 48MP when ProRAW Image Format is selected |
| Video Resolution | HD, 4K, or ProRes (Depends on iPhone model) |
| Stabilization | Auto or Off. Applies to video recording only |
| Self-Timer | Off, 3 sec, 5 sec or 10 sec. |
| Power Save | Off, 1 min, 2 min or 5 min. (Push any button to wake-up) |
| Display Brightness | From 10% to 100% |
| Leak Alarm | On or Off. Off bypasses the 3.5-minute pre-dive pressure test. The water sensor leak alarm is always on |
| Version | Displays current iOS app version installed on phone |
| On-screen Data | Displays exposure settings. This setting is located in SportDiver app Permissions |
| Android Settings | Description |
| Lens | Select single or multiple lenses (Depends on phone model) |
| Focus | Automatic or Manual; Push OK button to access and adjust manual focus |
| Shutter Speed | Auto or manual (1/30 sec to 1/2000 sec) |
| ISO | Auto or manual (50 to 3200) |
| Exposure Value (EV) | -3.0 top +3.0 in .3 stop increments |
| White Balance (WB) | Auto, Manual, UW Deep, UW Shallow, Daylight, Cloudy |
| Manual WB | (2000K to 1000K) in 100K increments |
| 3-Shot Burst | Captures 3 images within 1 second |
| Photo Resolution | Displays all available photo resolutions. Maximum photo resolution is 12MP |
| Video Resolution | 4K, 1080p or 720p at 30 frames per second (fps) |
| Color Effects | Off, Black & White, Negative, Sepia (Depends on phone model) |
| Stabilization | On or Off. Applies to video recording only |
| RAW+JPEG | On captures JPEG and RAW; Off captures JPEG only (Depends on phone model) |
| Power Save | Off, 1 min, 2 min or 5 min. (Push any button to wake-up) |
| Display Brightness | From 10% to 100% |
| Leak Alarm | On or Off. Off bypasses the 3.5-minute pre-dive pressure test. The water sensor leak alarm is always on |
| On-screen data | On or Off (Displays exposure settings when On) |
| System Reset | Yes or No (Resets settings to factory default) |
Important
The app supports iPhones and Android smartphones with the current and previous operating systems installed.
Some settings may not be available depending on the phone make/model.
Some settings may be blocked out (not accessible) depending on other conflicting settings.
| Sea Dragon 2500F (2) (Specifications for each light head) | |
| Body Material | Anodized aluminum light head with fiber-reinforced polycarbonate body |
| Light Source/Bulb Type | 1 x COB LED array (COB – Chip On Board) |
| Brightness | 2500 lumens (maintains 2500 lumens throughout burn time at full power) |
| Brightness Levels | Full power (100%), half power (50%), and quarter power (25%) |
| Buoyancy | Negative; -94 grams underwater (for each light head) |
| Button Control | Long push (1 sec) to power light on/off; Short push cycles through 100% → 50% → 25% → 100% [repeat cycle] |
| Light Modes | Constant light or hidden emergency signal light (activated by long push of power button) |
| Color Temperature | 5000K |
| Color Rendering Index* | 90 |
| Beam Angle | 120 degrees |
| Battery | Lithium Ion 7.4V, 3400 mAh, 25Wh (included) |
| Battery Charge Time | 170 minutes |
| Run Time | 60 minutes at full power/120 minutes at half power/240 minutes at quarter power |
| Depth | Tested to 60 meters |
| Dimensions | 22cm x 24cm x 6cm fully assembled with light head, battery, grip and tray; 13cm x 5.6cm x 10.4cm head only |
| Weight | 371 grams, head only (for each light head) |
| Bulb Life | 35,000 hours |
| O-ring | Dual NBR o-rings (lube included) |
*CRI is a measure of a light source’s ability to show object colors “realistically” or “naturally” compared to daylight, which has a CRI of 100 and represents the maximum value.
The beam angles for the Sea Dragon lights are shown as the true, tested “in-air” (above water) beam angle. Underwater, due to light refraction, the angle tightens to approximately 33% less.
Ultra Dual Tray Specifications
Holds Cameras and housings up to 229mm wide. The depth of the mounting surface is 48mm.
Overall Dimensions: 290 x 117 x 33mm.
Weight: 217g. Buoyancy is negative.
