Santi Double Drysuit Connector

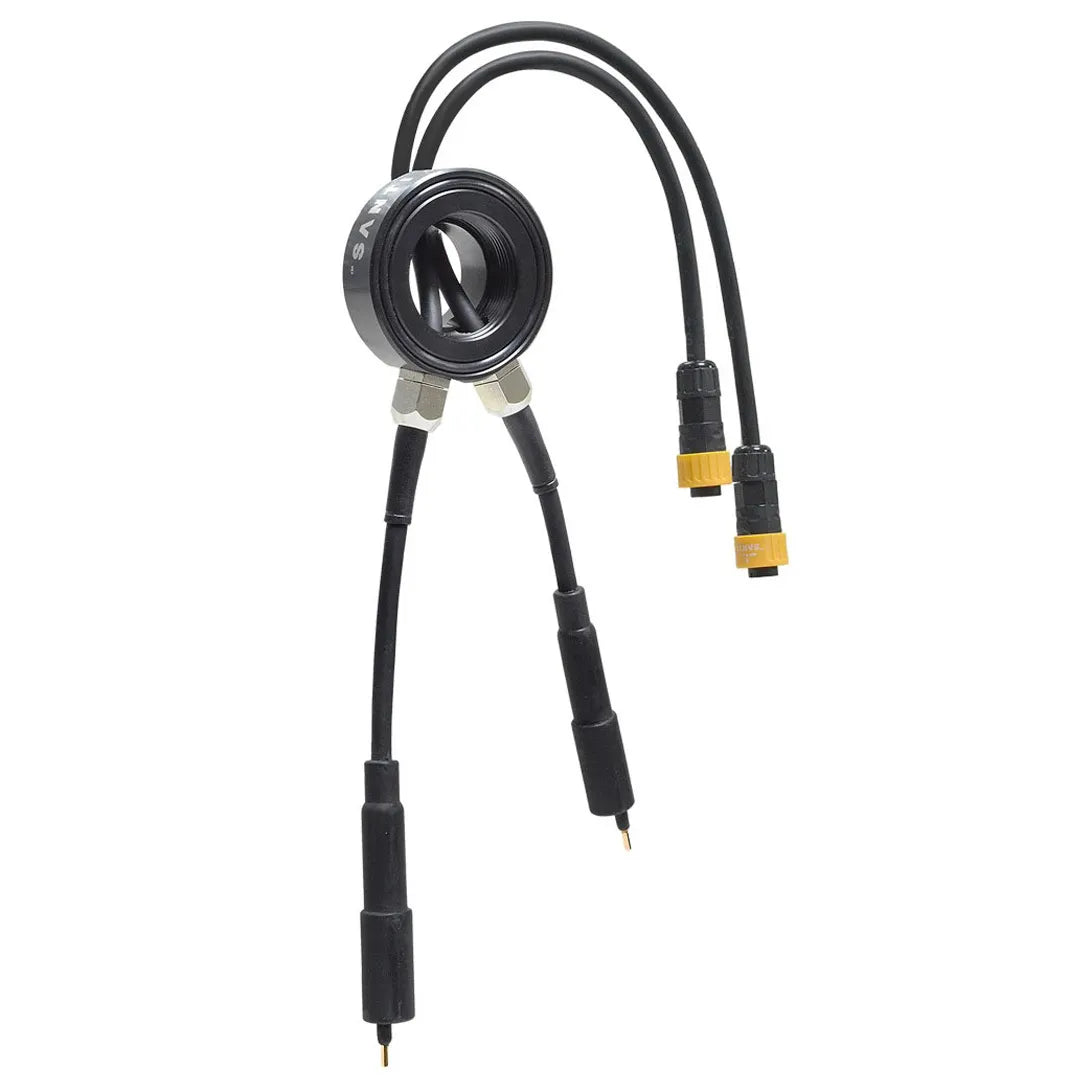

Santi Double Drysuit Connector – Dual Power for Extreme Cold

The Santi Double Drysuit Connector features two power cables to support multiple Santi heating system products simultaneously. This innovative design allows you to create two separate, independent heating systems for the most demanding dives.

For instance, you can power a Santi Heated Undersuit and a Heated Vest at the same time. This setup ensures you maintain maximum warmth in very cold waters.

Reliable Integration and Specialised Design

Santi specifically designed this connector for use only with their own heating system products. The double connector passes an external standard E/O connection through your standard drysuit inflation valve.

It effectively provides a secure power link from your external battery to the heated gear under your drysuit. Furthermore, this system allows you to manage high-power consumption without straining a single connection.

Installation and Technical Specifications

This device fits easily into your existing suit setup and is available for both Apeks or Si-Tech fittings. To set up the system, you screw your existing drysuit inflation valve directly onto the top of the connector unit. It adds only 19mm in height without the thread.

Additionally, the unit works safely with any power supply up to 12V. The cables offer varying lengths of 48cm and 56cm to provide flexible routing inside your drysuit.

Santi Double Drysuit Connector Highlights

• Dual E/O cord plugs allow independent connection to two separate power sources.
• Independent heating systems enable simultaneous use of a heated undersuit and a vest or gloves.
• Standard valve compatibility ensures the connector fits through Apeks or Si-Tech inflation ports.
• Two waterproof internal plugs ensure a reliable, safe connection to all Santi heating gear.
• Staggered cable lengths (48cm and 56cm) facilitate easier cable management inside the suit.
• Low-profile 19mm height minimises bulk while maximising your thermal protection capabilities.

Santi Heating Systems at glance
