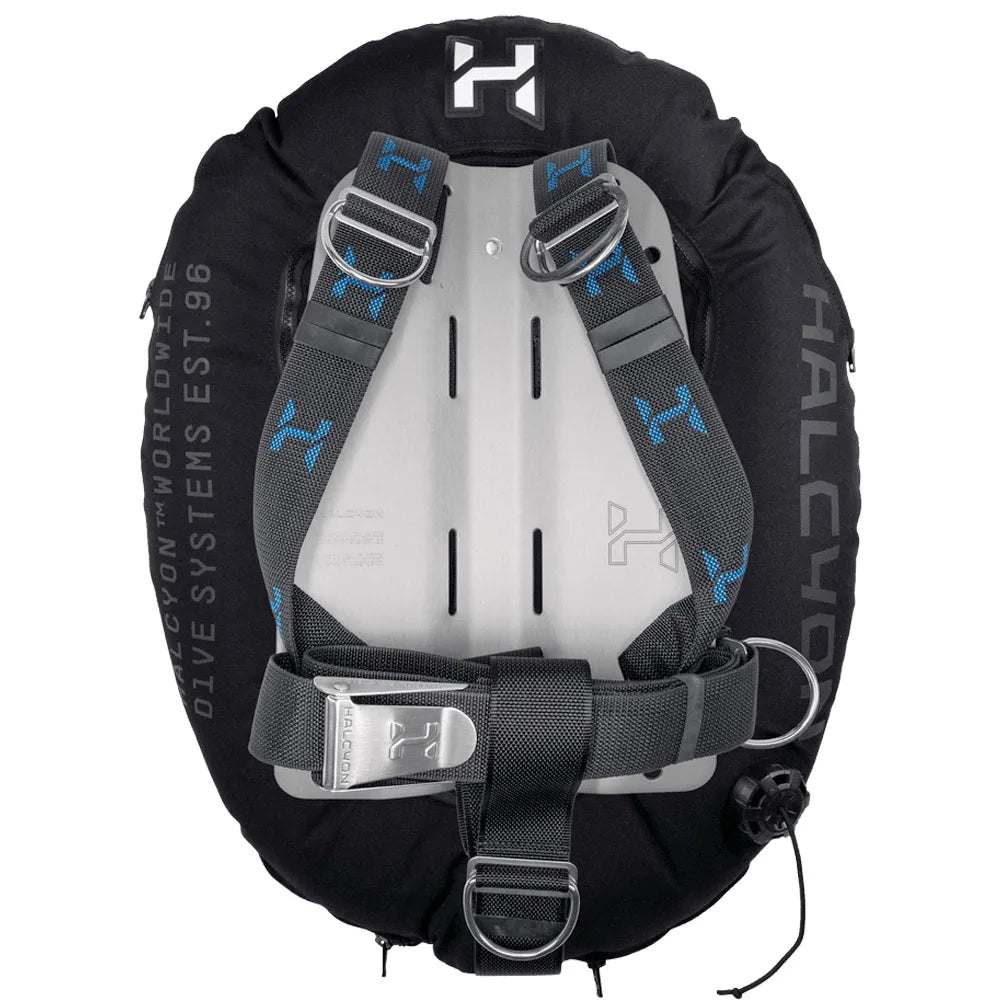

Halcyon Custom Colour Era Single Tank Wing System

Halcyon ERA Wing:
Redefining Buoyancy Control

From Evolution to Revolution: The Halcyon Era Single Tank Wing System sets a new standard for buoyancy control – introducing a new generation of wings. The ERA strengthens Halcyon's reputation of over thirty years for quality and technological innovation, while offering several key differences from traditional wing designs.

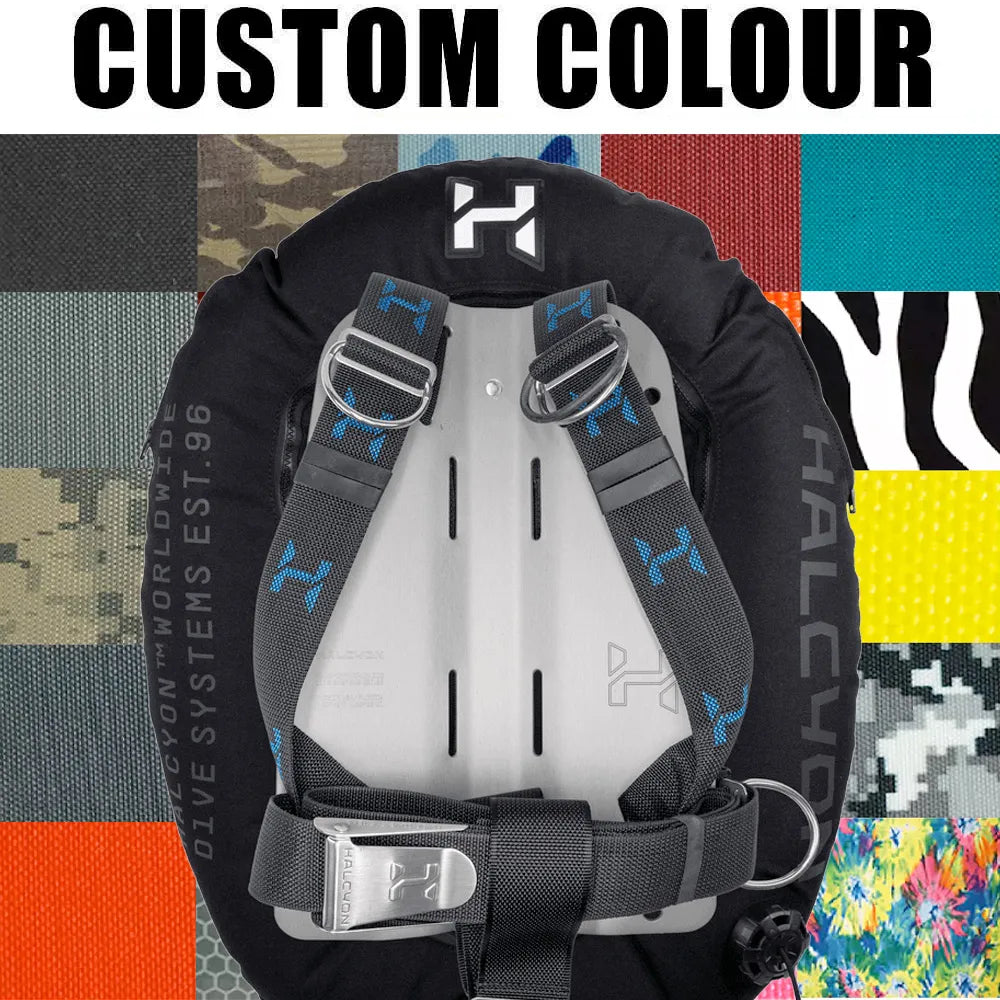

You can use the interactive Halcyon's  >Custom Wing Configurator to design and see your unique Halcyon Custom Colour Era Wing System. Then simply make your selection here. As this is specifically manufactured for you only, the estimated production time is 7 to 9 weeks.

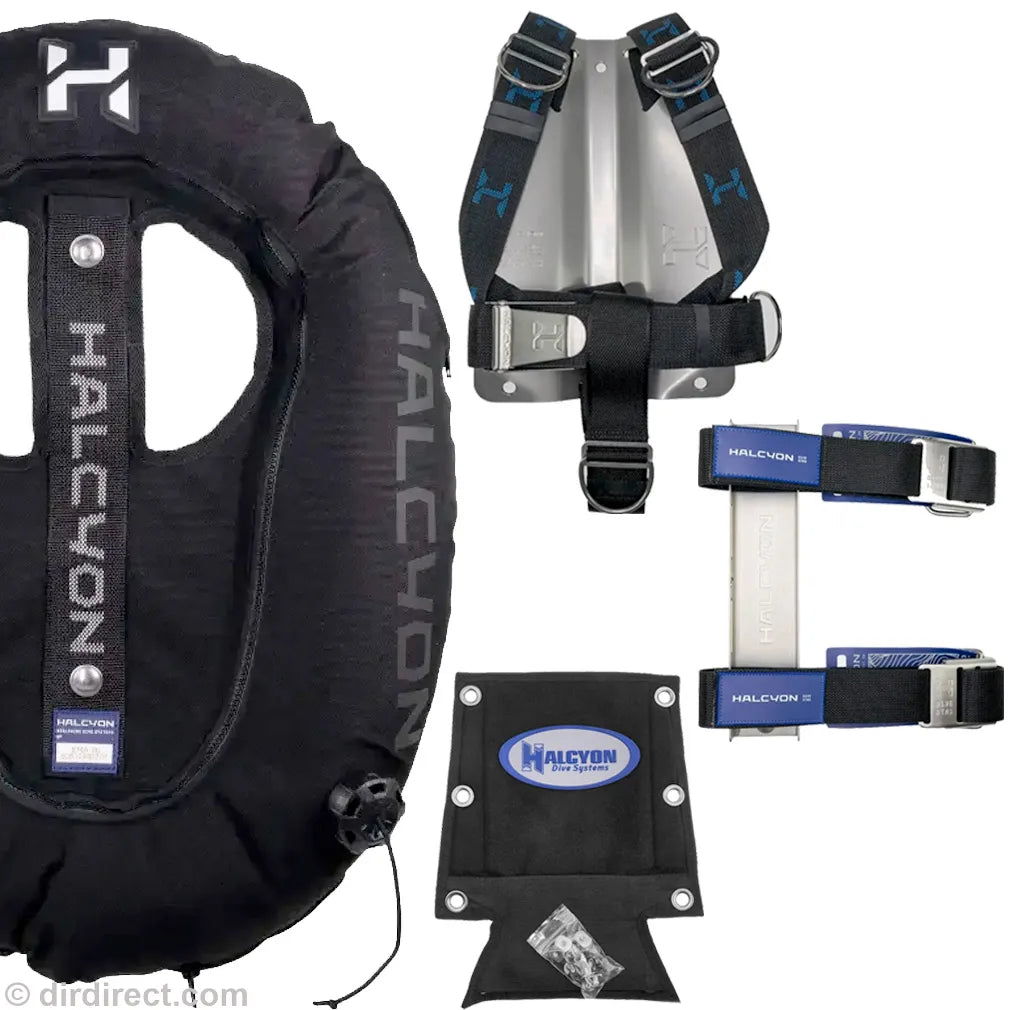

Halcyon Era Single Tank Wing System includes

• Halcyon Era Wing (30lbs or 40lbs) with 22" Inflator hose
• Aluminium or Stainless Steel Backplate with harness
• Halcyon Single Tank Adapter - SS with 2 cam straps + tank grip
• Halcyon MC Storage Pack and SS bolts
• Halcyon Secure (Webbing) Harness
• Crotch Strap, Stainless Hardware (D-Rings + Triglides)
• Halcyon Stainless Buckle
• Halcyon Traverse Bag

Optional components

• Halcyon ACB Weight Pockets
• Halcyon Single Tank Adapter weight

Key Features and Innovations of the ERA Wing

There are key differences that set the Halcyon ERA wing apart from the others:

• Revolutionary Shape:

  The most notable feature is a new bladder and outer shell geometry. The ERA's "revolutionary shape" marks a departure from the traditional, long, narrow profile of the Eclipse. The new bladder geometry is specifically engineered for better air distribution and trim control. This design aims to distribute air more efficiently, especially in the lower part of the wing.

  The intention is to generate additional lift where it's most beneficial, helping a diver achieve and maintain a horizontal trim position more easily. This improved trim reduces drag and conserves energy during a dive.

• Integrated Weight Pockets (Opti-Weight Pockets):

  The ERA wing features four zippered weight pockets built directly into the outer shell. The ERA's integrated pockets provide a more streamlined and "built-in" solution for trim weights. Each pocket can hold up to 1kg (2.2lbs). These pockets are designed for fine-tuning trim and balance, rather than carrying the bulk of a diver's weight, which should be placed on the tank or torso. This offers a more streamlined and precise way to manage weight distribution.



• Smart Hose Routing:

  The wing features dual hose openings, a design proven in Halcyon's double-tank system – The Legend. This helps keep hoses and accessories clean and neat, preventing tangles or snags.



• Compact Profile:

  A new low-profile elbow on the inflator hose fits snugly against the tank. This creates more space for the diver's head and reduces strain on the corrugated hose fitting, resulting in a more comfortable and streamlined profile.



• Lift Capacities:

  The ERA wing is available in two lift capacities: 30lbs and 40lbs, catering to different diving configurations and requirements.

Who is it for?

• For divers who want a strong, modular foundation without the extra weight or cost—perfect for building skills and customising over time.
• New or advancing divers entering technical training
• Cost-conscious divers who still want performance and upgrade options
• Travel divers who want a lightweight, reliable system
• Divers who prefer assembling and understanding their gear firsthand

Halcyon Backplate and Harness

The Halcyon Secure Harness fitted to the stainless steel or aluminium backplate allows for infinite adjustability, providing a perfect fit for all divers.

Whether you are diving wet or dry you will find the Halcyon backplate with a harness stable and well-fitted. The five-point system ensures a snug fit and eliminates tank roll and drift.

Halcyon backplates have been refined to provide the highest-quality finish and materials available. Small details, like the unique bends near the bottom of the plate, create an ergonomic curve, increasing diver comfort.

Bent D-rings in the shoulder facilitate one-handed storage of accessories like backup lights or stage bottles. Complete adjustability of D-rings eliminates inappropriate attachment points.

The utility holes allow easy mating with the MC Storage Pak to stow an SMB or to fit a drysuit inflation system.

Which backplate to use?  While not set in stone, aluminium backplates are generally preferred by travelling or wet suit divers as they are lighter. The popular backplate for drysuit diving is stainless steel, where the additional weight is a benefit (spreading out the weight needed to compensate for buoyancy while taking it off the diver's waist).

• Stainless steel: High-grade, polished 304 stainless steel
• Aluminium: high-grade hard-coat aluminium
• Bare backplate weight: Steel 2.22kg / Ali 0.77kg
• Size: 26cm x 39.3cm

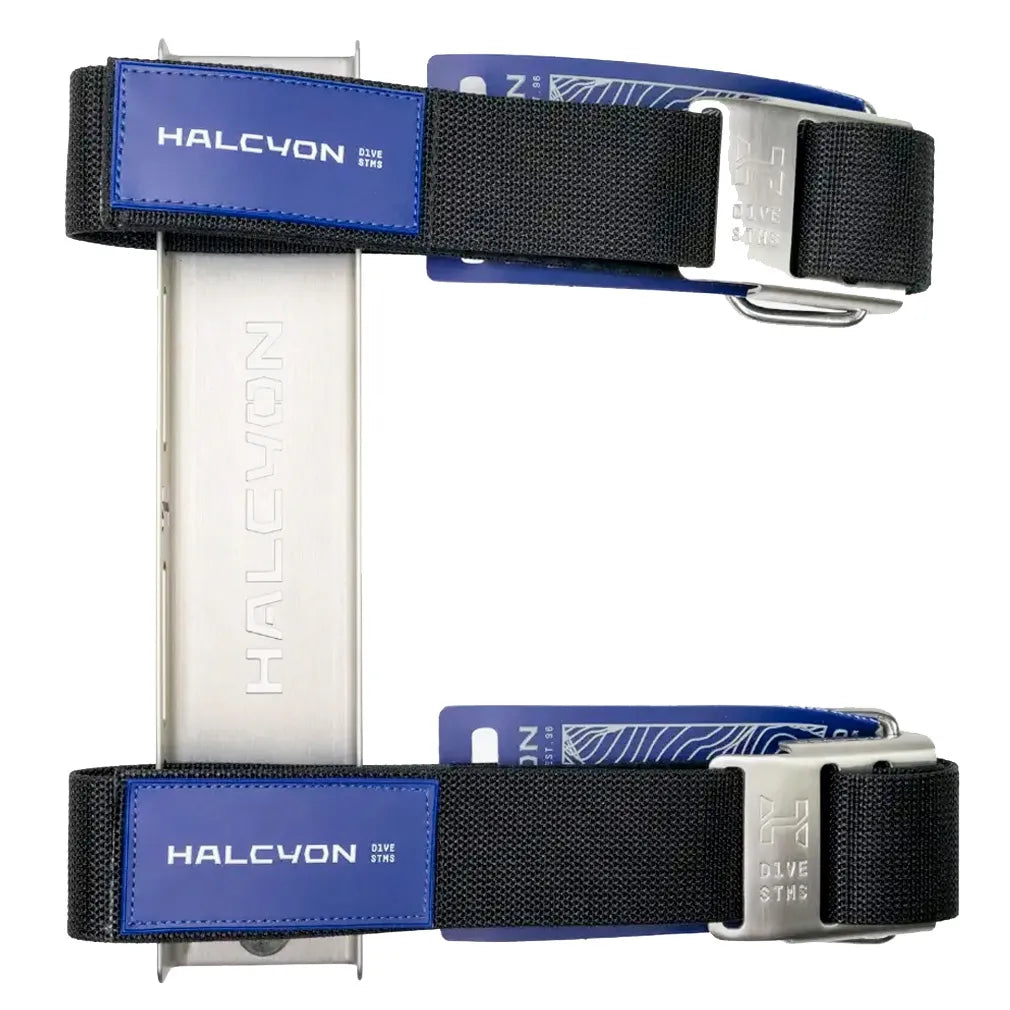

Halcyon Single Tank Adapter

The stainless steel Halcyon Single Tank Adapter is designed to attach a backplate and single wing onto the single cylinder. The secure cam bands come with stainless steel buckles and Octogrip Pads to prevent sliding.

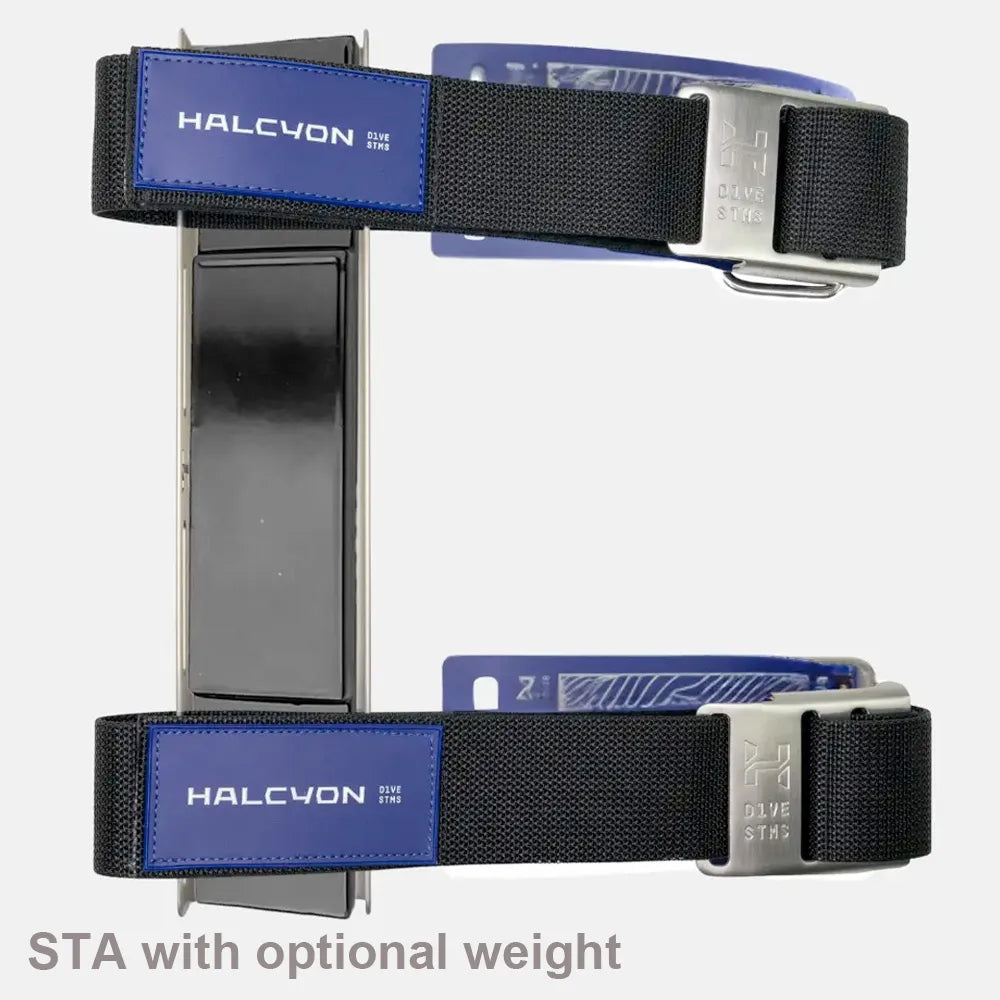

The Halcyon Single Tank Adapter plate itself is deep enough to add an optional weight. This optional 6lbs central weight can be removed if not required making it back to a standard single tank adapter.

Halcyon MC Storage Pak

The Halcyon backplate pocket is the most efficient means to store any of the various Halcyon inflatable markers with ease. Stowing your favorite lift device in a Halcyon Storage Pak provides a hassle-free storage place without compromising the ability for rapid deployment of a SMB or lift bag.


Optional Halcyon ACB Weight System

The integrated Halcyon ACB Weight System pockets are an ideal solution for divers seeking quick-release weight. Each weight pocket can hold up to 5lbs/2.3kg soft or hard weights.

The vertical orientation consumes less space and the side release buckle prevents accidental weight loss but can be quickly released. The removable weight pouch features an easy-carry handle.

A simple tri-glide connection secures the ACB pockets (Active Control Ballast) on the harness waistband and allows the mounting of a primary light behind.
