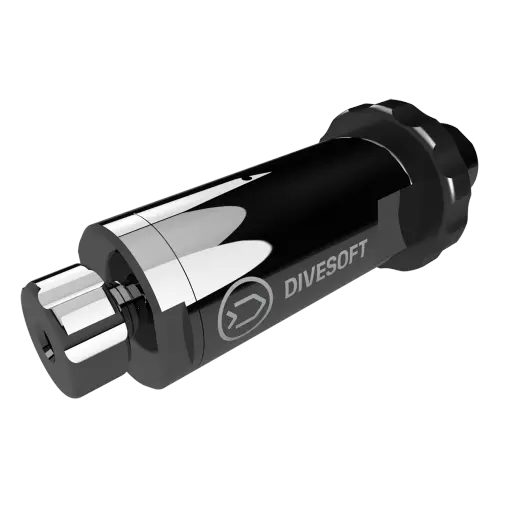

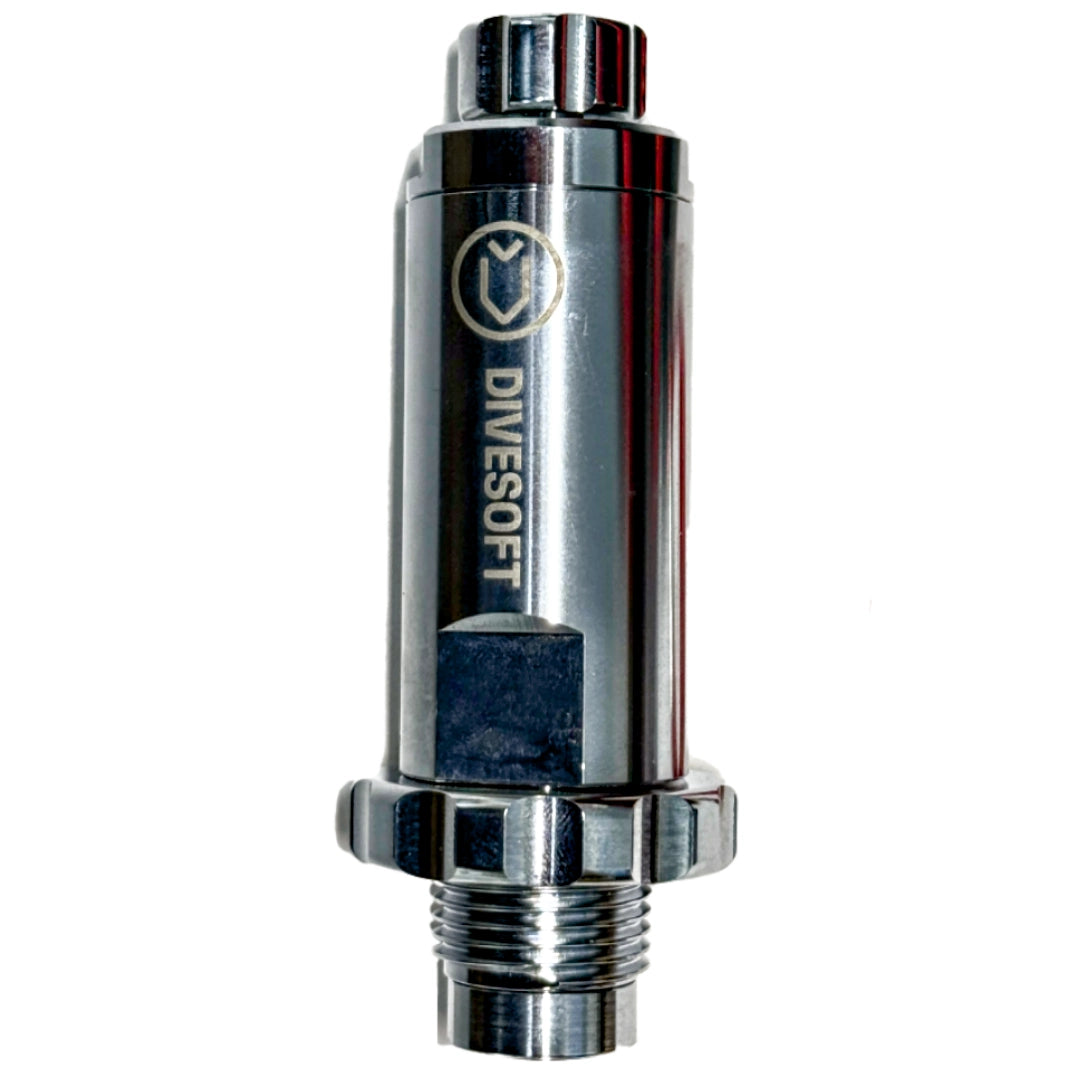

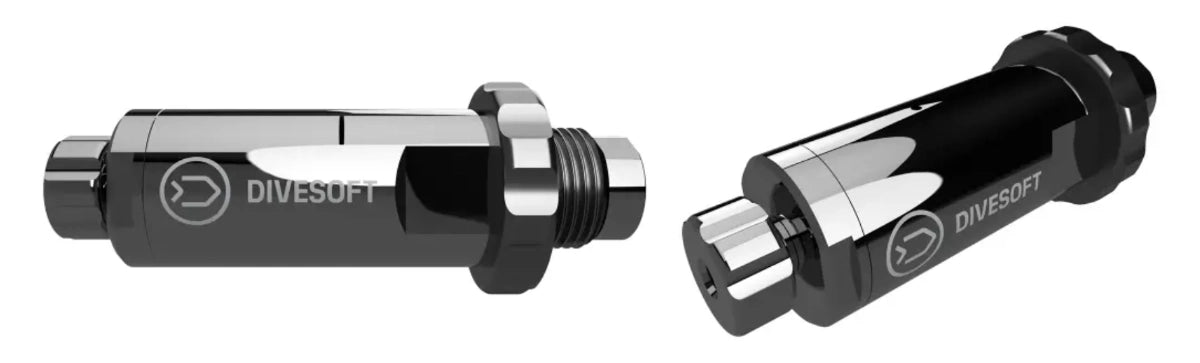

Divesoft Professional Flow Limiter MK2
Dispatched in 1 to 2 days
The Divesoft Professional Flow Limiter MK2 reflects a new, efficient design combining the relief valve with the gas sampling nozzle in a single mechanism. Regulating the flow of gas to your analyser it allows for more accurate analysis even at low pressures.
New Efficient Design:
Divesoft Professional Flow Limiter MK2
The Divesoft Professional Flow Limiter Mk2 is equipped with a regulator that reduces the gas flow to your analyser at a constant rate, regardless of the cylinder pressure.
This enables the gas sampling to remain accurate even at very low pressures. This feature has especially been proven to be critical during gas blending procedures.
A new efficient design combines the relief valve with the gas sampling nozzle in a single mechanism.
Closing the gas sampling nozzle will first engage the relief valve and vent the remaining gas from within before completely closing the device.
| Dimensions | 45.6 × 111 × 40 mm |
| Weight | 100 g |
| Weight with sensor | 126 g |
| Range of measuring the concentration of oxygen | 0 to 100 % |
| Measuring temperature | 0 to +40° C |
| Mixture pressure | Consistent with ambient pressure, in the range of 700–1100 millibars (20–32 inches of Hg) which corresponds to the standard atmosphere at an elevation in the range of 0 to 3000 m (0–10000 feet) above sea level. |
| Rated gas throughput | 0.2 L/min |
| Oxygen sensor | Divesoft R-22S or compatible (sold separately) |
| Power source | CR 2450, user replaceable |
| The gas connection | Direct contact connection to both "DIN" valve (EN 144-2) for 200/300 bars (G 5/8 thread) and M26x2 valves. Possible connection with the Divesoft professional flow limiter and connection hose. |
| Warranty | 24 months, 12 months on the oxygen sensor. The battery is not covered by the warranty. |
