Apeks MTX-R Twinset Regulator Set
Apeks MTX-R Twinset Regulator Set includes: 2 x MTX-R 1st stages and 2nd stages, 7' main regulator hose and 24" backup regulator hose. Innovations in design mean that the MTX-R regulator performs in almost freezing water, something that very few other regulators on the consumer market can boast.
Dispatched in 1 to 2 days

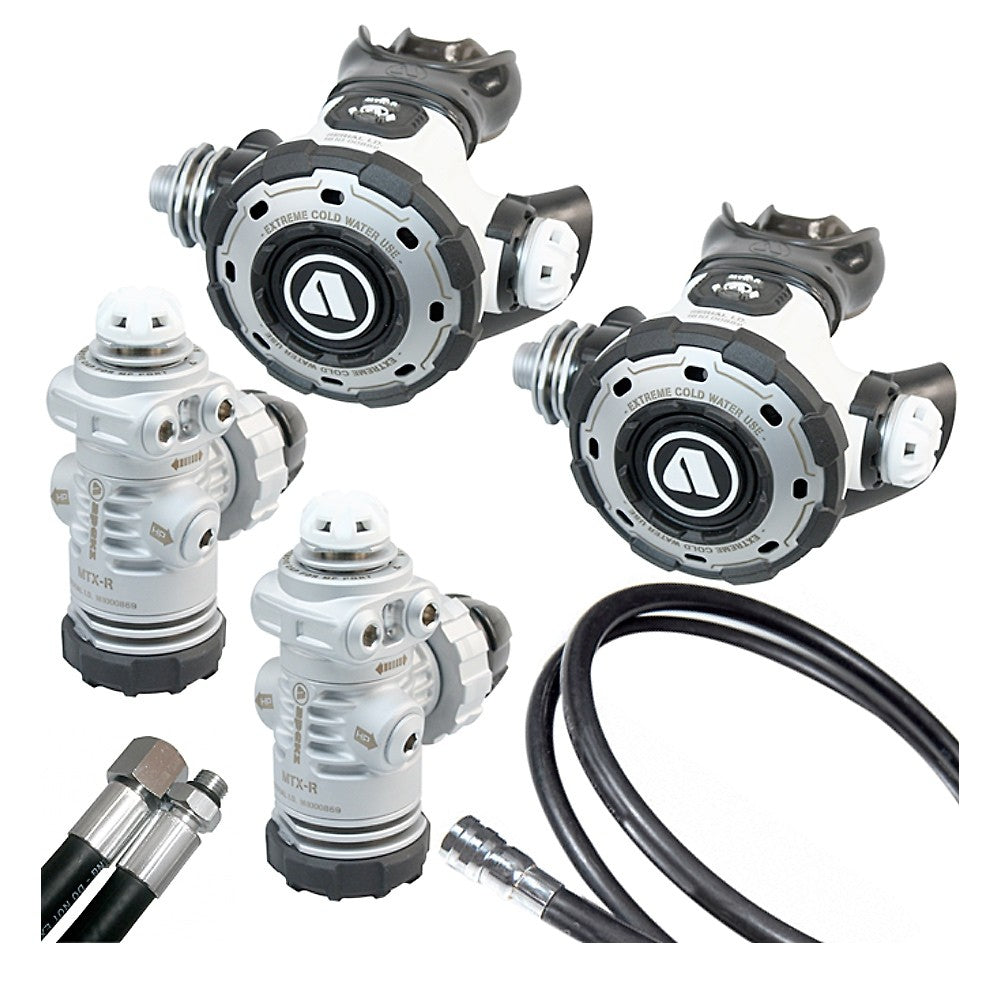

Complete Apeks MTX-R Twinset Regulator Set. Set includes: 2 x MTX-R 1st stages, 2 x MTX-R 2nd stages, 7' main regulator hose and 24" backup regulator hose.
The military has been using Apeks regulators for over 20 years and now Apeks have put that military expertise into a brand new military specification regulator, exclusively for the consumer market. The “M” in MTX stands for Military and the “R” for recreational version and the new MTX-R is based on the MTX, a regulator that was developed in accordance with the United States Navy Experimental Dive Unit extreme cold water test.
Innovations in design mean that the MTX-R regulator performs in almost freezing water at a depth of over 60 metres, something that very few other regulators on the consumer market can boast. Tested for octopus use to 60m in cold water, this regulator set from Apeks is truly unique. The MTX-R is not just an extremely reliable regulator but also very easy to service “ in the field”.
Complete set includes:
2 x Apeks MTX-R 1st Stages
2 x Apeks MTX-R 2nd Stages
1 x Rubber 7' main Regulator Hose
1 x Rubber 24" backup Regulator Hose
Apeks MTX-R First Stage
Leading features of the first stage include a world-first over-moulded first-stage end cap to the sealed (environmental) diaphragm helping prevent ice buildup that could cause first stage free flow in extreme circumstances.
The forged first stage body gives maximum thermal performance while a ribbed diaphragm clamp on the first stage further ensures improved heat exchange in cold water conditions.
- A first of its kind, over-moulded first-stage end cap and environmental diaphragm to prevent ice build-up that could cause a free flow in extreme circumstances.
- Forged 1st stage body for maximum thermal performance.
- Ribbed diaphragm clamp on 1st stage to ensure improved heat exchange in cold water conditions.
- Angled (2) HP ports allow for optimal hose routing and transmitter fitting.
- 5 intermediate pressure ports (with fifth covered with protective white number while not in use)
- Parallel turret ports allow for improved hose orientation.
- Superb protection from impact damage
“In use, the MTX-R provides a sublime breath, inhalation is effortless and silky smooth, regardless of orientation” (Mark Evans, Scubalab Test Extra, Sport Diver magazine, January 2017)
Apeks MTX-R Second Stage
The reversible (right and left hand) second stage of the MTX-R has a redesigned and enlarged, patented, heat exchanger which surrounds the valve mechanism, dissipating the cold caused by gas expansion. Metal has also been incorporated into the front cover. Large protective elastometer bumpers on the sides and top protect the 2nd stage, which comes with a comfo-bite mouthpiece.
In addition to its extreme cold water ability, the regulator is rugged, strong and designed to withstand the knocks and bumps that come with life on an expedition.
- Simple to use Second Stage with no dive adjustment controls and a reduced chance of free flow.
- Reversible (left or right hand)
- Patented heat exchanger surrounds the valve mechanism, dissipating the cold caused by gas expansion while drawing in the warmth of the ambient water.
- Comes with comfort-bite mouthpiece
“In short, it looks the business, performs like a champ, and doesn’t break the bank. What more could you want from a top-level regulator?” (Mark Evans, Scubalab Test Extra, Sport Diver magazine, January 2017)
Connections | DIN |
Type of first stage | Over-balanced diaphragm design, environmentally sealed |
Body Type | One piece forged body |
Number of HP ports | 2 (7/16" UNF) |
Number of MP ports | 5 (3/8" UNF) |
Environmental Dry Kit | Standard |
First stage exterior | Satin chrome |
Orientation | Convertible LH or RH |
Coldwater Use | Yes - extreme |
Type of second stage | Pneumatically balanced |
Opening Effort Control Knob | No |
Integrated Venturi Lever | No |
Mouthpiece | Comfo-bite™ |
Exhaust tee | Diver Changeable |
Heat Exchanger for freezing resistance | Yes |
Overall work of breathing (WOB) scores | Avg. 1.75 joules/litre |
Nitrox compatible | Yes to 40% O2 out of the box / Can be O2 cleaned to 100%. |
