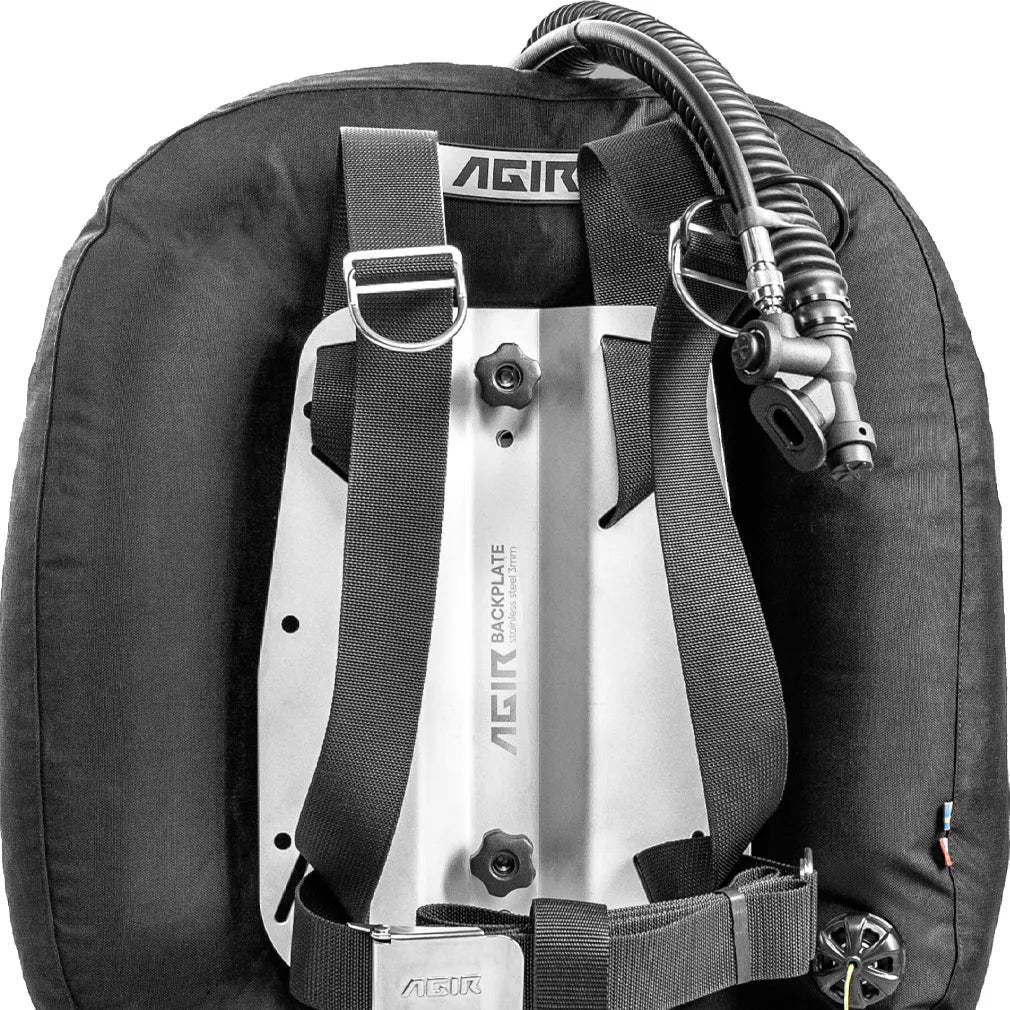

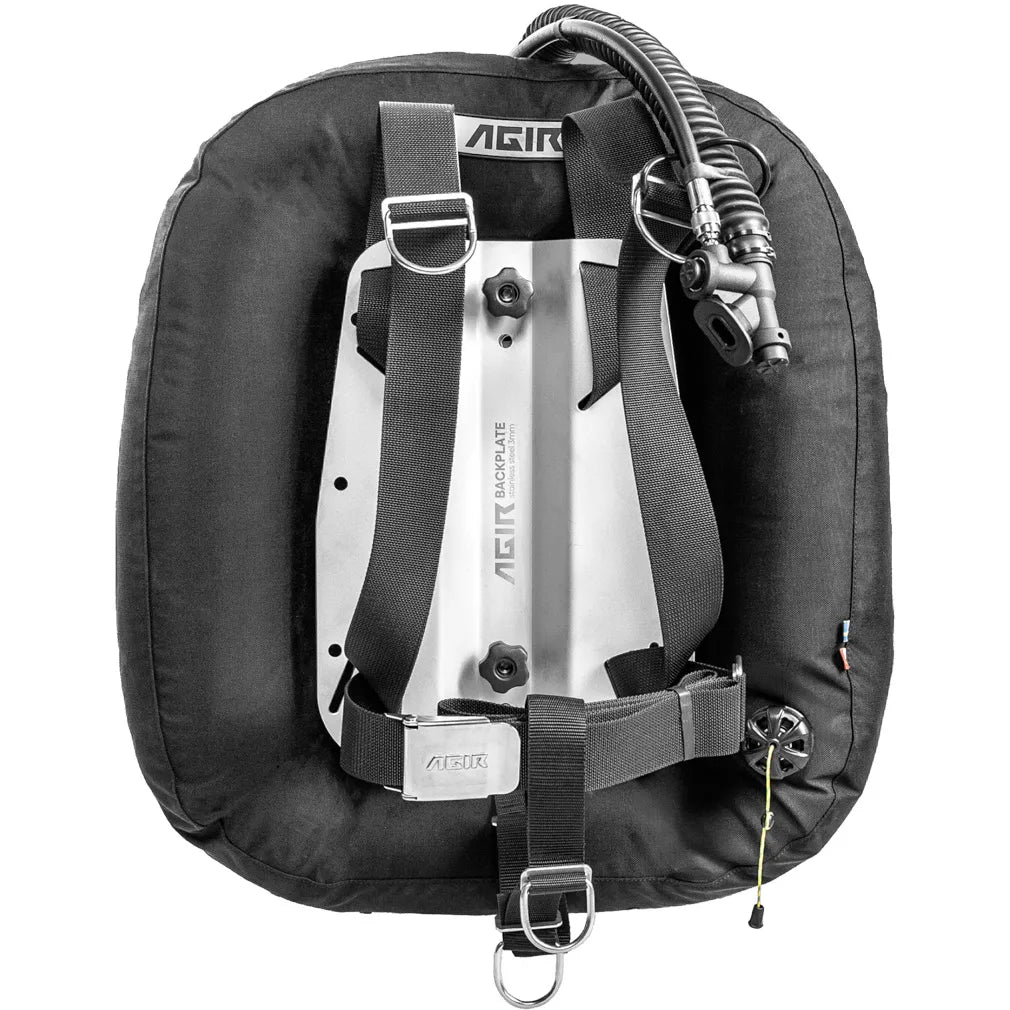

Agir Niord Wing System - Twinset

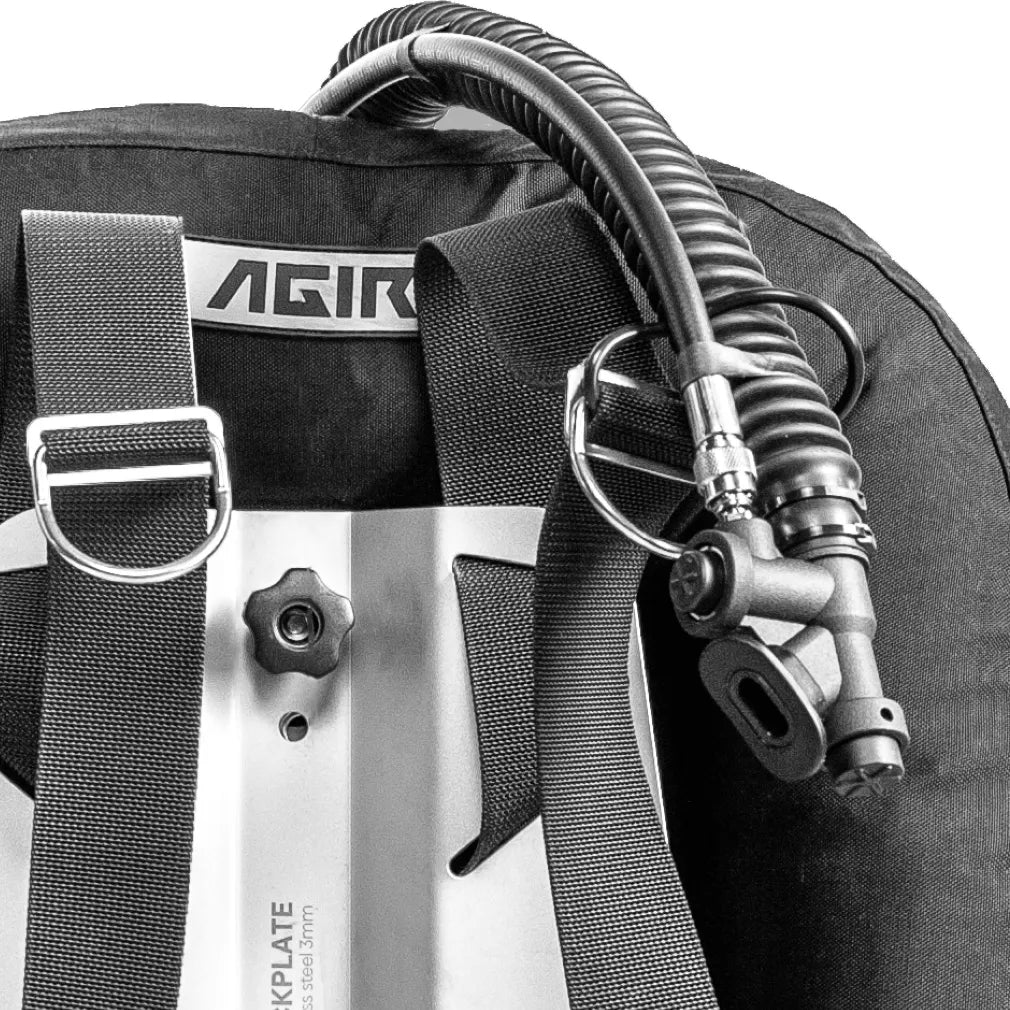

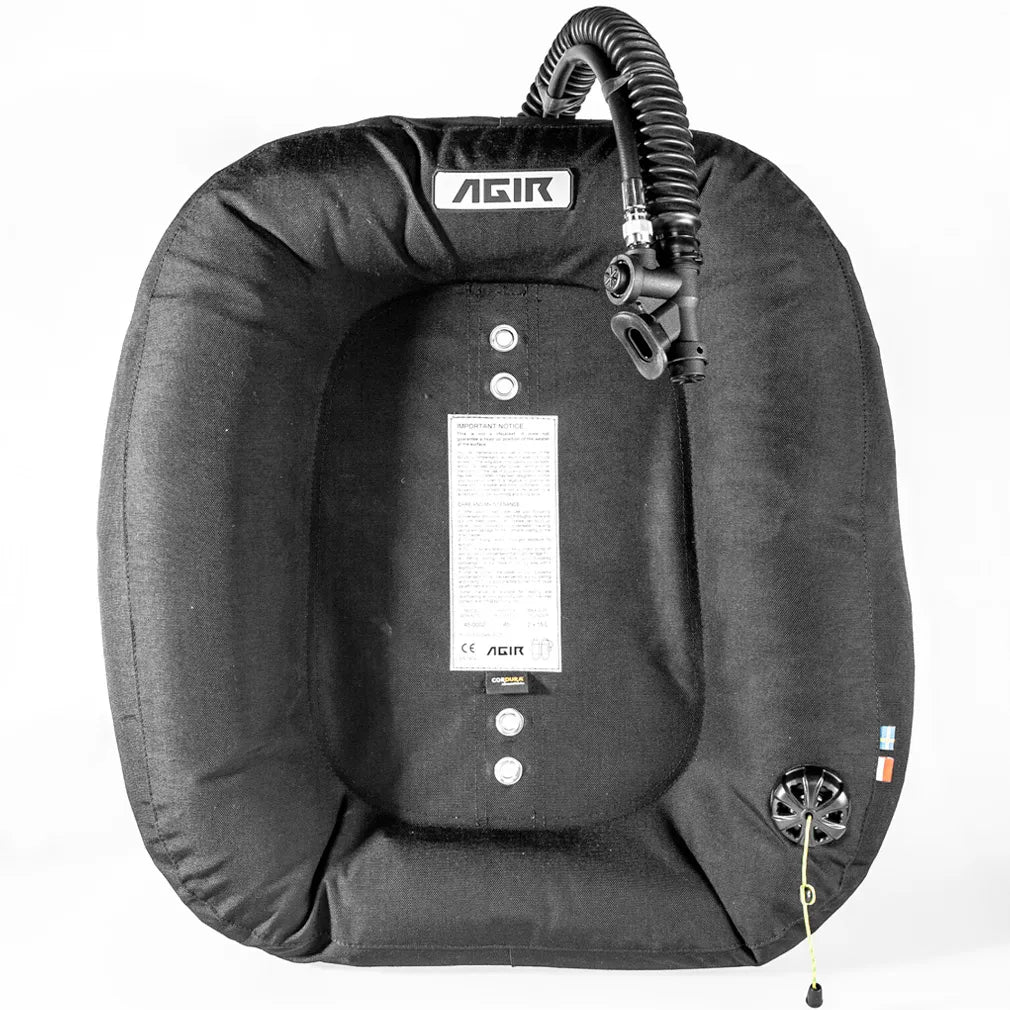

The AGIR Niord wing, designed for twin tanks, is a double-shell single-bladder buoyancy compensator. The outer shell is made of durable Cordura 1000. The inner bladder is made of highly puncture-resistant Nylon 400. The inflator has a corrugated tube with increased flow capacity and durability, finished with a K-type head.

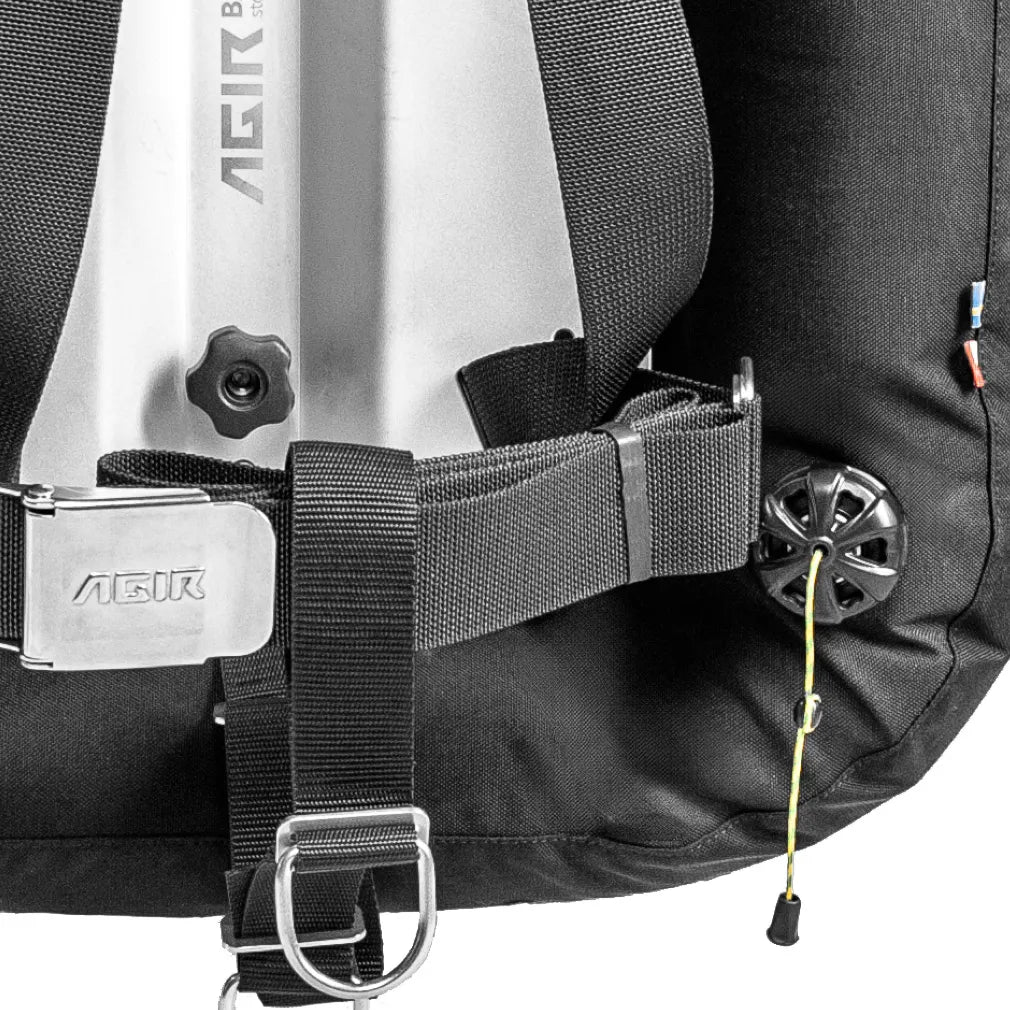

The overpressure relief valve (OPV) is located at the bottom of the wing on the left-hand side at the back of the diver for easy access. It is equipped with a nylon cord that allows the valve to be opened while wearing thick gloves and minimises the possibility of entanglement.

The AGIR wing can be adjusted in two positions thanks to mounting holes, which helps to optimise trim while venting excess gas.

Its shape and 360-degree internal bladder allow gas to move easily from one side of the internal bladder to the other. This ensures simple, quick and effective release of excess gas. The OPV can be used to adjust buoyancy in a horizontal position, reducing the need for diver movement.

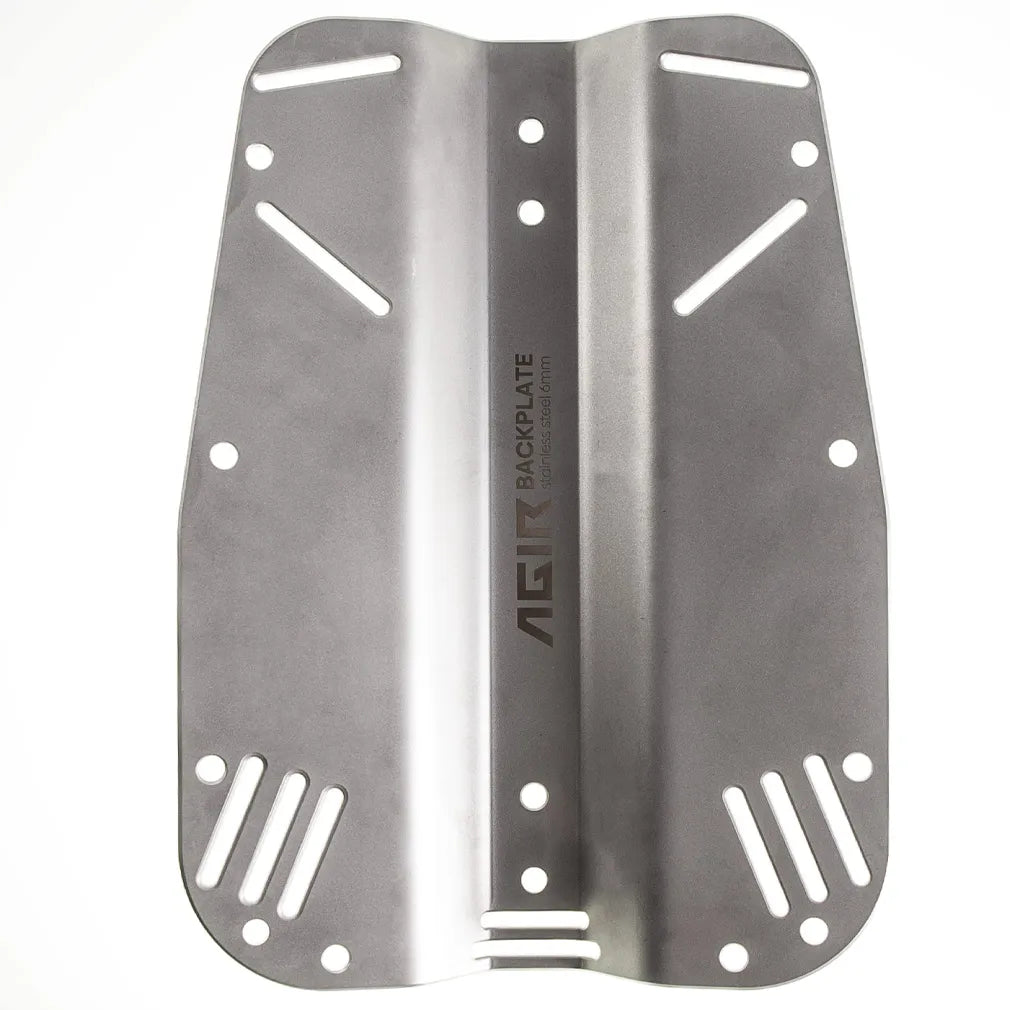

The plate is made with utmost care and features additional slots for waist belt webbing, allowing you to adjust the harness position or attach AGIR ballast pockets.

Thanks to horizontal slots at the bottom of the plate with different widths, you can attach a crotch strap that is either 40 or 50 mm wide. The increased curvature of the plate means that even long bolts will not damage your suit or wetsuit, which also translates into comfort of use.

An additional advantage is the possibility of mounting nuts with a plastic coating, which makes it easier to tighten the plate to the cylinder.

AGIR Niord Key Technical Specifications:

• Buoyancy: 45lbs, 20.4kg

• Outer shell material: Cordura 1000

• Inner bladder material: Nylon 400

• Length and Weight of wing only with BC hose: 60cm, 1.425kg

• Operating temperature range in water: from -2Cº to 40Cº

• Air use temperature range: from -10Cº to 60Cº

• Cylinder type: Twinset (Doubles)

• Maximum cylinder capacity: 2x15L
• Mounting hole spacing: 27.5cm (standard 11 inches)

• Inflator type: K

• Inflator working pressure range: 6-13 Bar

• Length of corrugated inflator hose: 40cm

• Length of low-pressure hose: 60cm

Niord Setup Weights by Backplate Used:

• 3mm Aluminium Backplate: 3.380kg
• 3mm Stainless Steel Backplate: 5.035kg
• 6mm Stainless Steel Backplate: 7.445kg

The Agir Niord complete set consists of:

• 1x Niord 45 lbs wing with inflator & corrugated hose
• 1x 3mm aluminium, or 3mm or 6mm Stainless Steel plate

• 1x Standard 2” wide single-piece webbing harness

• 1x Crotch strap with 2x tri-glides and D-Rings

• 2x Shoulder tri-glides & D-Rings

• 1x LH Side waist D-Ring & tri-glide

• 1x SS Waist buckle

• 1x Rubber corrugated hose retainer
