1.5L Drysuit Inflation Cylinder

This 1.5L Drysuit Inflation Cylinder in brushed aluminium, also known as an Argon cylinder, is commonly used as an alternative drysuit inflation method for deeper and longer dives where helium is utilised as a diving gas.

It's an ideal size for CCR divers, covering longer decompression and multiple dives, compared to the smaller 6cf Aluminium Suit Inflation Cylinder or the 1L Steel Suit Inflation Cylinder.

It can optionally be used for Argon fills to add warmth to colder, even longer-duration dives.

1.5L Drysuit Inflation Cylinder Specifications

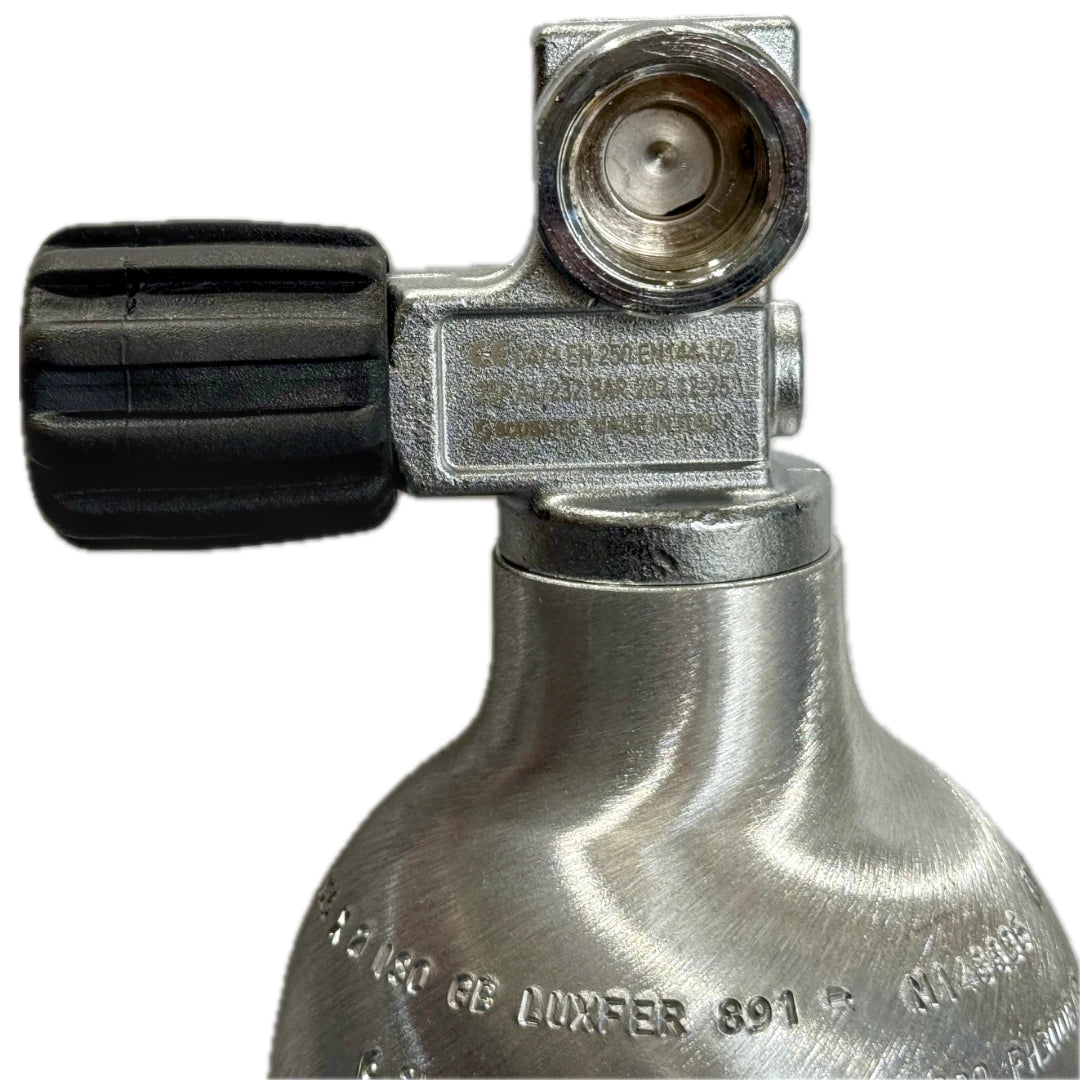

• BtS M25 valve
• Cylinder make: Luxfer
• Working pressure: 200bar
• Weight (empty): 2.05-2.08kg
• Buoyancy (empty): +0.31kg
• Cylinder dimensions: height 32cm - diameter 13cm

Recommended practice for suit inflation systems

• Never allow the suit inflation cylinder to fully empty underwater
• Storing cylinders with at least 2 bars of pressure in them
• Keeping/transporting any empty cylinder with the valve closed
• Drying and capping valves when the regulator is not attached
• Periodic check against moisture/water buildup in the cylinder

Do suit inflation cylinders need testing?

Cylinders that may, during normal use, lose all gas pressure above ambient when underwater, such as side-mount, bail-out, marker buoy, buoyancy compensator, and suit inflation cylinders, are at a greater risk of water ingress and internal corrosion when empty.

If fresh water is present inside a cylinder, it can cause the wall to lose more than 2mm of its thickness within six months. In salt water, this loss can exceed 5mm. (Diving cylinder walls are typically between 2 and 5mm thick).

While testing of the diving cylinder remains at 2.5 years for an internal visual and 5 years for a full hydrostatic test in the UK, a more frequent visual inspection by a certified test centre for suit inflation cylinders is recommended.
