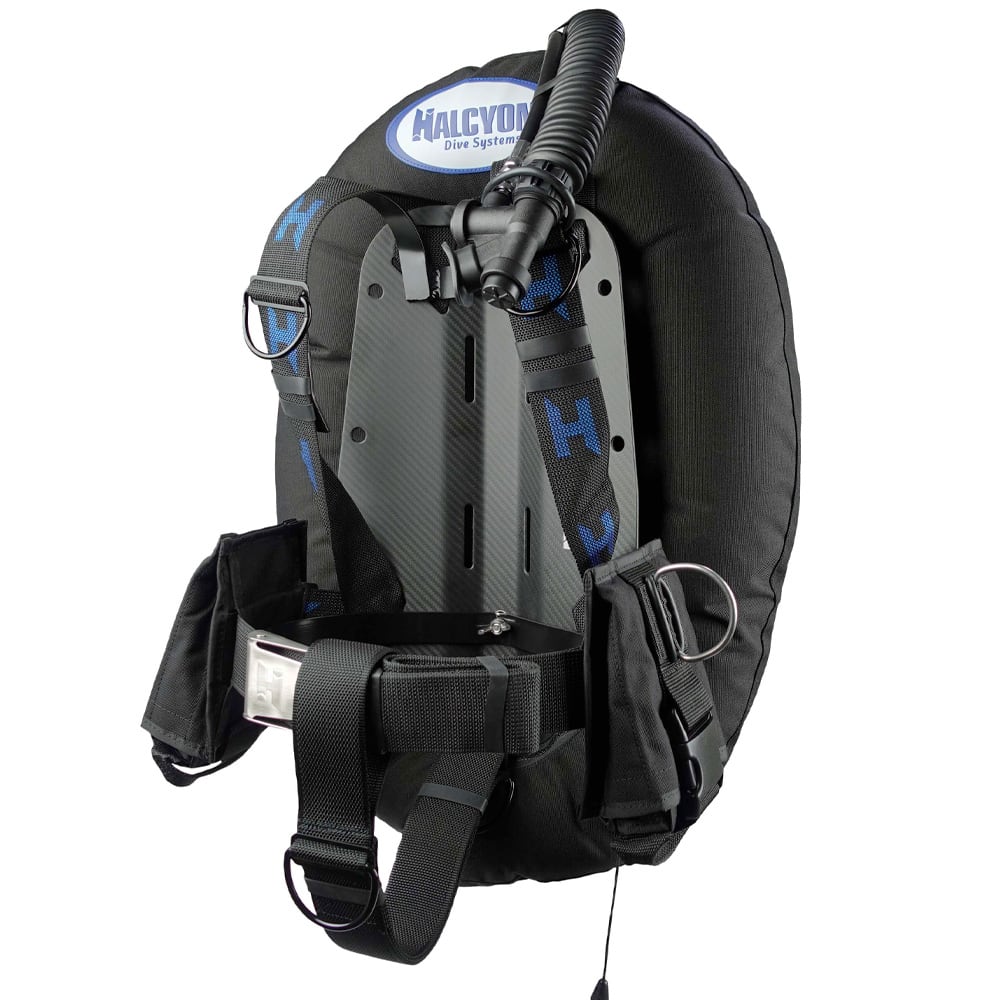

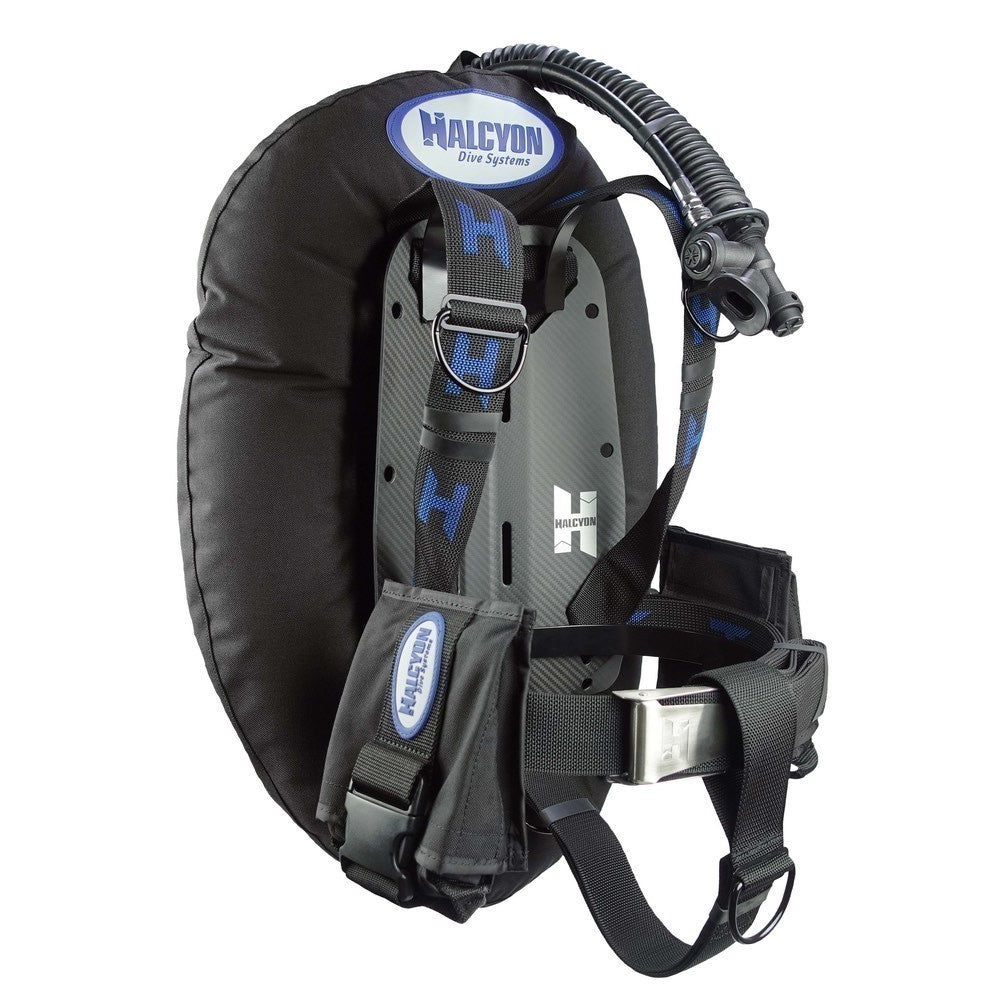

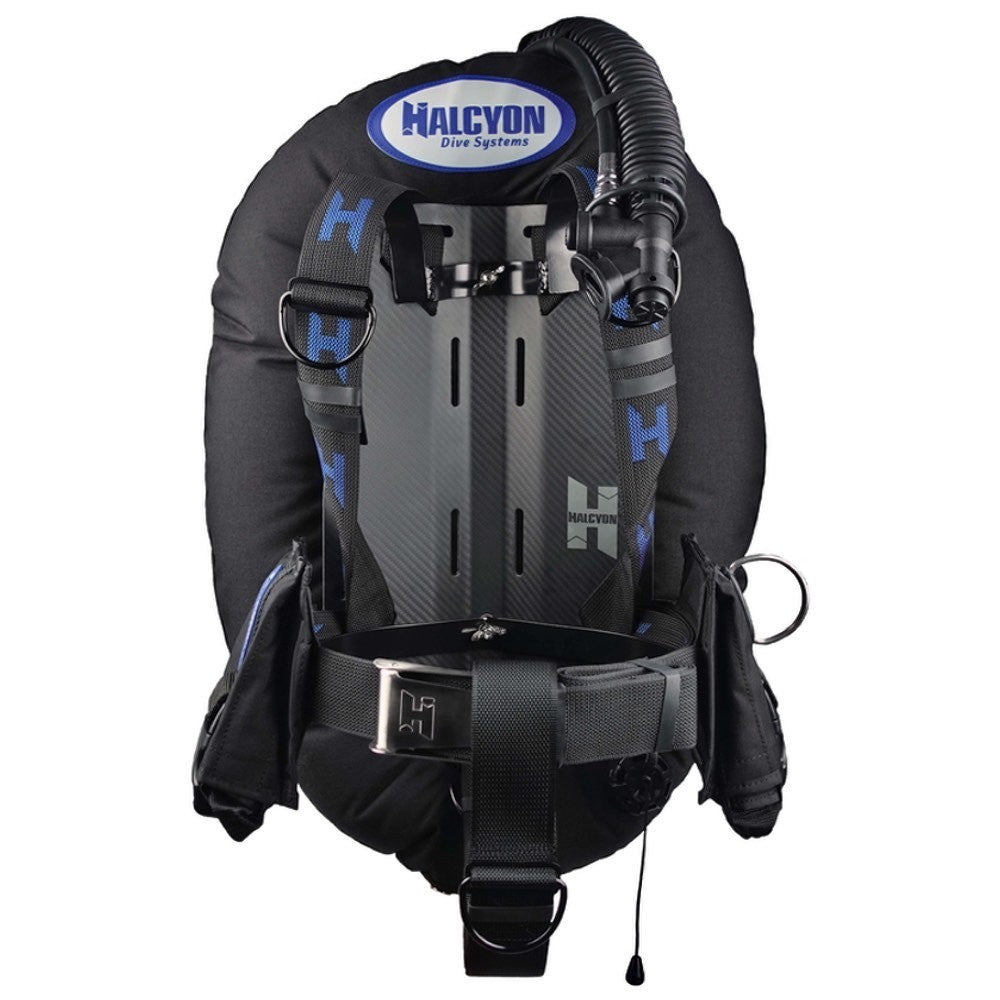

Halcyon Adventurer Carbon Fiber Single Tank Wing System
The lightweight Halcyon Adventurer Wing system, is a single tank BC based around the popular Eclipse wing and a Carbon Fiber backplate in Halcyon's traditional design. The system includes a Eclipse wing, the CF backplate with harness, an MC Storage Pack for backplate, ACB Weight Pockets and a Single Tank Adapter.
Wing Size
Dispatched in 1 to 2 days
The super-lightweight Halcyon Adventurer Wing system, is a single tank back-mounted buoyancy compensator. It is made up of the popular Eclipse wing supported by a Carbon Fiber backplate. The wing has an abrasion, tear resistant outer shell and inner bladder. It's donut shape allows unrestricted even air flow for perfect horizontal trim underwater. It is suitable for single tank divers from any agency and at all levels. It's been our choice wing for try dives and beginner through advanced recreational diving courses for many years.
Totally clutter-free compared to traditional jacket-style BCDs, the profile of the Eclipse wing supports the single tank along diver's entire length, preventing unnecessary drag and minimizing in-water effort.
The low drag design of the wing spreads the air in a balanced way on back of the diver, keeping the BC part of the compensator out of the way and offering unprecedented streamlining during a dive. The wing has a narrow elliptic shape which more or less matches the divers width.
There are no air-inflated side panels or pockets as on traditional 'jacket type' BC's, avoiding a "legs down" position often caused by air to the side and front of the diver. There are no restrictions on the diver's chest - making it extremely comfortable, with no chest compression, also allowing one size to fit all with no hassle.
Advantages of a wing system over a "jacket type" BC are numerous. The Halcyon system depends on a one piece webbing harness looped through a sturdy aluminium or stainless steel backplate that should last many life times. Once donned, a webbing crotch strap can be utilised to keep the whole system in place with minimum movement.
- Infinitely adjustable and designed to fit you perfectly
- Easy-adjust crotch strap with rear and front D-ring
- All required D-rings and retainers (both shoulders + LH waist)
- Balanced power inflator
- Front facing Left Hand side dump valve
- Single tank adapter
- Shipped fully assembled
- Lifetime Warranty for the first owner on RF-welded seams
- Weight: 3.98kg
- Weight with ACB weight pockets: 4.485kg
This clutter-free system is easily adjustable to suit any size, any type of diving and any thickness of suit/undersuit a diver may be using. It is ideal for men, women and young divers alike and the harness and backpack can easily be moved to a twinset wing in the future.
HALCYON ADVENTURER SYSTEM INCLUDES:
- Halcyon Eclipse Wing (20, 30 or 40lbs)
- 22" Inflator hose
- Halcyon Carbon Fiber Backplate
- Halcyon Standard Harness with Crotch Strap
- Halcyon MC Storage Pack with SS Bolts
- ACB weight pockets
- Halcyon Single-Tank Adapter (upgradeable to Weighted STA)
HALCYON ECLIPSE WING
The Halcyon Eclipse is a low profile, exploration-grade wing that leaves all other single tank designs in its shadow. Another example of Halcyon taking the game to the next level.
The Eclipse wings have a long and narrow profile to support the diver's tank along his or her entire length, preventing unnecessary drag and minimizing effort. A circular zipper around the inside of the wing allows for easy inspection.
A choice of lift capacities helps to maximize comfort and streamlining while accounting for various buoyancy requirements that result from differences in tank size, exposure protection, or equipment requirements.
A drainage system allows water to drain rapidly from the outer cover to minimize excess weight.
An inflator elbow strain relief constructed from two-inch nylon webbing minimizes wear on this.
Halcyon inner bladders are RF welded with a lifetime warranty on all seams.
- Outer shell 1680-denier ballistic nylon
- Inner bladder 400-denier Nylon
- Available in 20, 30 and 40 lbs lift capacities.
Which wing size?
The Halcyon Eclipse wing comes in 20, 30 and 40lbs lift capacity and the amount of lift required by a diver depends on his/her kit configuration. Stretched out flat the Eclipse 30 measures 67cm x 46cm compared to the Eclipse 40 which is 70cm x 50cm.
The 30lbs wing is more suitable for a lighter profile diving rig such as a single 12L steel cylinder whereas the 40lbs is ideal for divers who want that "extra bit" of lift for emergency assistance or to carry heavier cylinder setups like a 15L cylinder.

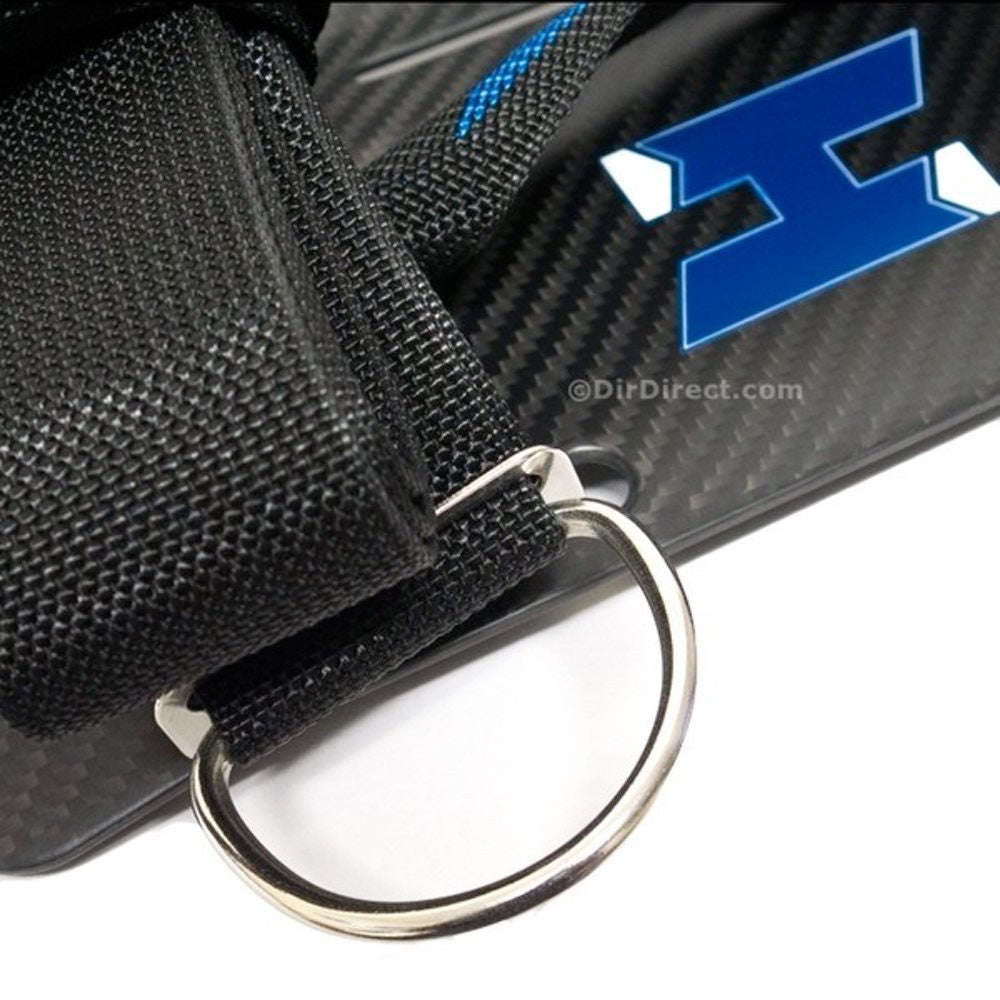

HALCYON SECURE STANDARD HARNESS
The Halcyon Secure Harness provides an infinitely adjustable fit, eliminating the uncomfortable movement found in conventional “jacket” buoyancy compensators. This perfectly tailored fit means that divers of all sizes can enjoy a custom diving configuration that supports unparalleled stability and diving comfort. Moreover, this unique system is easily convertible, allowing one to adjust buoyancy or quickly switch from singles to doubles.
Regardless of your future aspirations, this flexibility means your diving system can grow with you. From your first open-water dive to your 100th deep dive, Halcyon is with you all the way.
- Secure, continuous webbing provides a custom fit
- Pre-bent shoulder D-rings facilitate quick storage of accessories from Scout lights to stage bottles
- Complete adjustability of D-rings eliminates inappropriate attachment points.
- EPDM elastic bands help secure accessories
- Stainless Steel waist buckle
- Adjustable crotch strap enhances stability.
HALCYON CARBON FIBER BACKPLATE
As with most Halcyon products, an immense amount of behind-the-scenes work is required to create a plate we are proud to sell. Halcyon backplates have been refined over the years to provide the highest-quality finish and materials available.
Small details like the unique bends near the bottom of the plate create an ergonomic curve, increasing diver comfort. Meanwhile the precise fabrication process ensures the quality you have come to expect from Halcyon.
Each Halcyon backplate is made to the highest quality with a detailed process eliminating any sharp edges. Utility holes allow mating with Storage Pak to stow a variety of lift devices or SMB.
What backplate to use? While not set in stone, aluminium or lighter carbon fiber backplates are generally preferred by traveling or wet suit divers as they are far more lighter than their stainless steel counterparts. The popular backplate for dry suit diving is the stainless steel, where the additional weight is a benefit (spreading out the weight needed to compensate for buoyancy while taking it off the diver's waist). Most dry suits prefer the SS backplate and the Halcyon Eclipse Wing System.

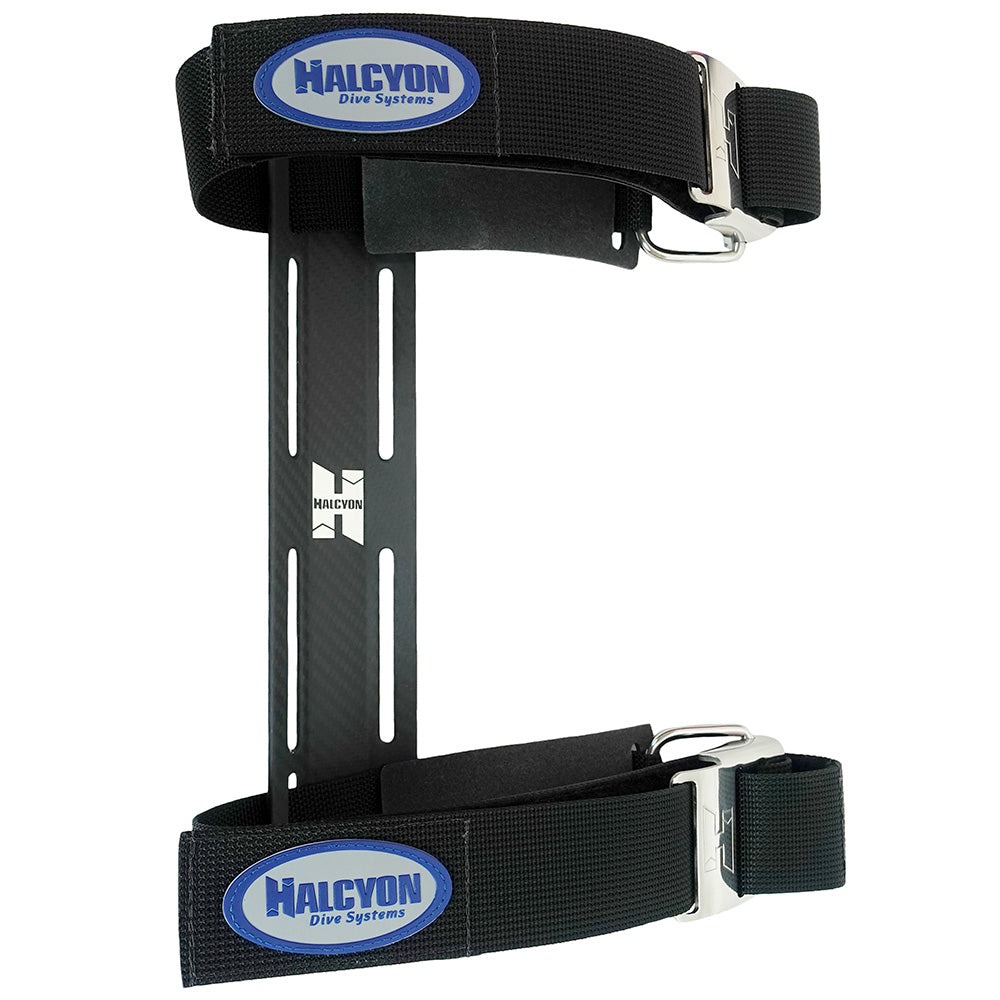

HALCYON SINGLE TANK ADAPTER
Halcyon's Single Tank Adaptor is used to mount the wing and backplate to a single cylinder.
The standard single tank adapter can be upgraded to a Halcyon Weighted Single Tank Adapter. The central weight can be removed if not required making it back to a standard adapter.
HALCYON MC STORAGE PAK
The Halcyon backplate pocket is the most efficient means to store any of the various Halcyon inflatable markers with ease.
Stowing your favorite lift device in a Halcyon Storage Pak provides a hassle-free storage place without compromising the ability for rapid deployment of a SMB or lift bag.

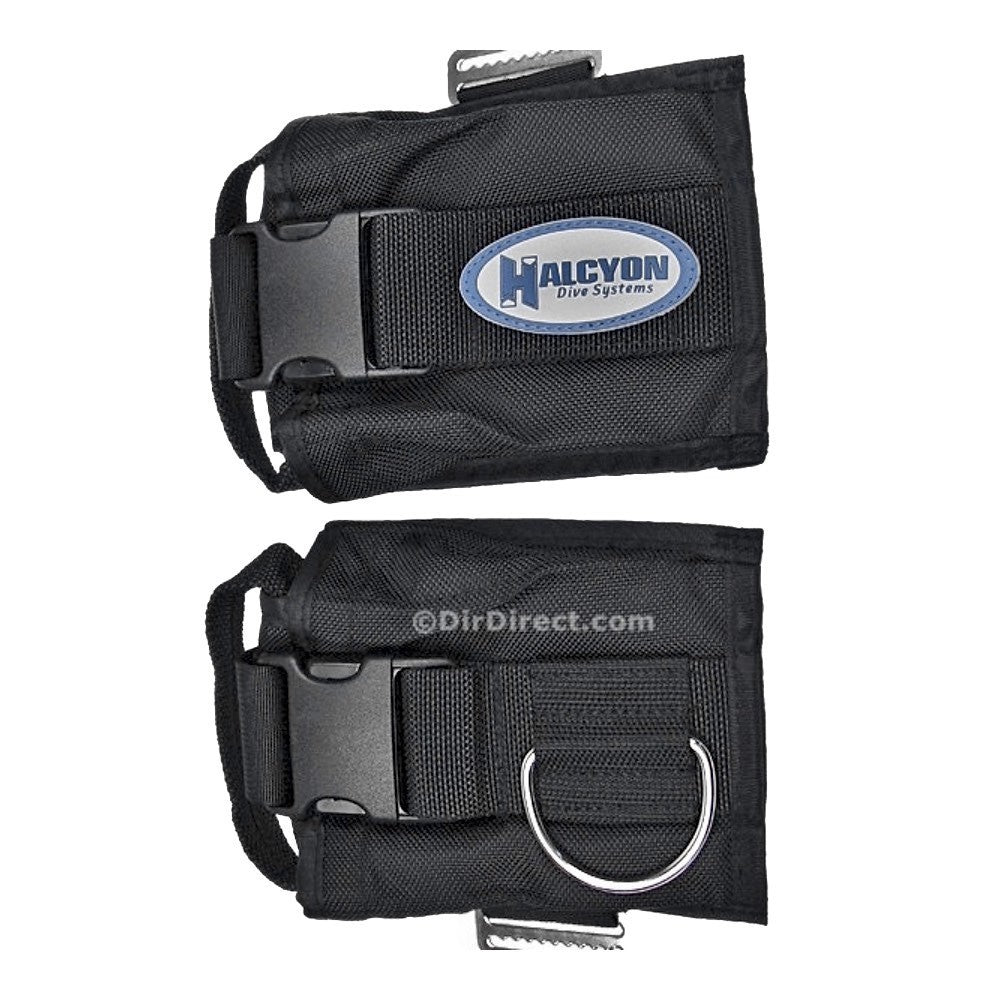

HALCYON ACB WEIGHT POCKETS
Halcyon ACB (Active Control Ballast) integrated weight pockets are an ideal solution for divers seeking releasable weight for their Halcyon BC system.
This patented Halcyon design is simple and effective; when complemented by our fixed and removable ballast options, these pockets fine tune system weighting while supporting stability and diving comfort.
- 10-lb. ACB System (5 lbs/2.3 kg per side)
- Vertical orientation consumes less space
- Simple tri-glide connection secures the ACB on the Harness waist band
- Allows mounting of a primary light behind the ACB pocket
- Side release buckle prevents accidental weight loss but can be quickly released
- Can be used with most soft or hard dive weights
- Removable weight pouch features an easy-carry handle
